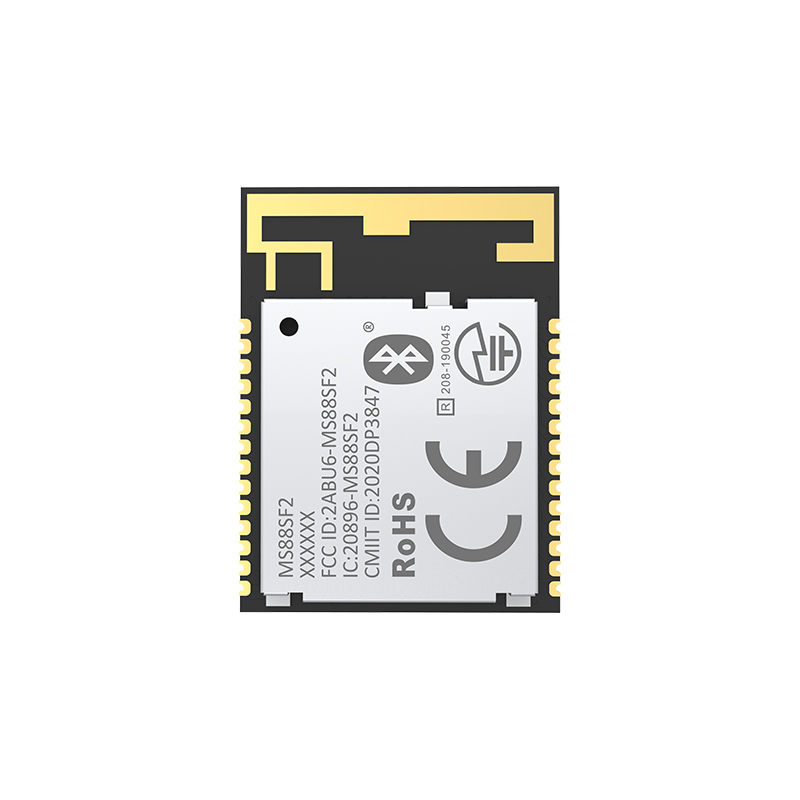

MS88SF2-1Y33AIR

$5.78

Description：RF NRF52833 BLUETOOTH MODULE
Series：-
Mfr：Minewsemi
Package：Tape & Reel (TR)

SKU:3d16fdfbcaff Category: RF Transceiver Modules and Modems Brand: Minewsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MS88SF2-1Y33AIR is listed in the RF Transceiver Modules And Modems range at ChipApex. The manufacturer field lists Minewsemi. Its product description is RF NRF52833 BLUETOOTH MODULE. Review the specifications below when checking this part for your BOM.

RF Transceiver Modules And Modems specifications for MS88SF2-1Y33AIR

Description：RF NRF52833 BLUETOOTH MODULE
Series：-
Mfr：Minewsemi
Package：Tape & Reel (TR)
RF Family/Standard：Bluetooth
Protocol：Bluetooth v5.4
Modulation：-
Frequency：-
Data Rate：-
Power - Output：-
Sensitivity：-96dBm
Serial Interfaces：GPIO
Antenna Type：PCB
Utilized IC / Part：nRF52833
Memory Size：512kB Flash, 128kB RAM
Voltage - Supply：1.7V ~ 5.5V
Current - Receiving：4.6mA
Current - Transmitting：4.9mA
Mounting Type：-
Operating Temperature：-40°C ~ 85°C
Package / Case：-

RF Transceiver Modules And Modems datasheet and documents for MS88SF2-1Y33AIR

MS88SF2-1Y33AIR

RF Transceiver Modules And Modems Overview

The MS88SF2-1Y33AIR is a Bluetooth v5.4 transceiver module utilizing the nRF52833 system-on-chip. It features a PCB antenna and supports GPIO serial interfaces. The module operates within a voltage range of 1.7V to 5.5V, consuming 4.6mA during reception and 4.9mA during transmission. It includes 512kB of Flash memory and 128kB of RAM. The receiver sensitivity is rated at -103dBm, and it functions reliably across an operating temperature range of -40°C to 85°C.

RF Transceiver Modules And Modems Feature Summary

Integrates Nordic nRF52833 SoC for efficient Bluetooth Low Energy processing
Supports master-slave mode switching via command interface
Complies with Bluetooth SIG specifications for reliable wireless communication

RF Transceiver Modules And Modems Applications

Bluetooth Low Energy sensor networks
IoT device connectivity modules
Wireless peripheral integration

RF Transceiver Modules And Modems Procurement Notes

Verify that the specific suffix '1Y33AIR' matches the required regulatory certification and antenna configuration for your target market. Confirm compatibility with the host system's voltage levels and GPIO pinout before integration. Ensure the tape and reel packaging aligns with your assembly equipment capabilities. Cross-reference the datasheet revision date to confirm current firmware support status.

RF Transceiver Modules And Modems Selection Notes

Select this module when a cost-effective solution based on the nRF52833 is required. It is suitable for applications needing Bluetooth v5.4 compliance without the higher performance demands of the nRF52840. Consider the integrated PCB antenna if space constraints prevent external antenna usage. Verify that the 512kB Flash capacity meets the application's firmware storage requirements.

RF Transceiver Modules And Modems Part Context

This component belongs to the Minewsemi MS88SF series of wireless modules. It is distinct from the MS88SF2-1Y33AIR variant which utilizes the nRF52840 SoC. The MS88SF2-1Y33AIR specifically leverages the nRF52833 architecture, offering a different balance of memory and processing power compared to other models in the product line.
