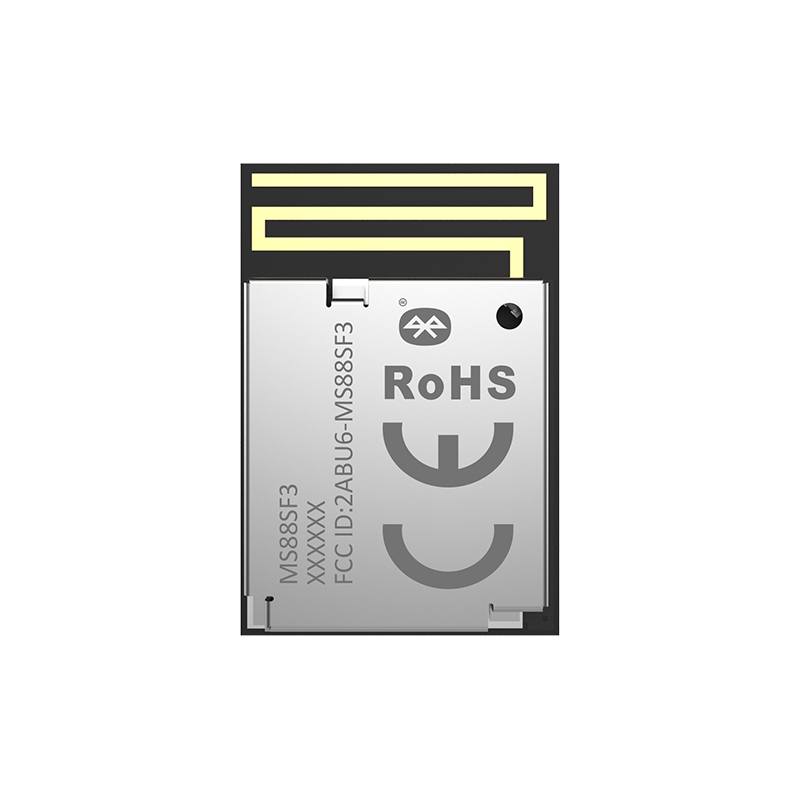

MS88SF3-1Y40AIR

RF Transceiver Modules And Modems Overview

The MS88SF3-1Y40AIR is a Bluetooth v5.4 transceiver module by MinewSemi, utilizing the nRF52840 SoC with an ARM Cortex-M4F CPU running at 64 MHz. It features 1MB Flash and 256KB RAM, supporting IEEE 802.15.1 protocols with data rates up to 2Mbps. The module operates on a 1.7V to 5.5V supply, drawing 4.9mA during transmission and 4.6mA during reception. It includes a PCB antenna, GPIO serial interfaces, and functions within a -40°C to 85°C temperature range.

RF Transceiver Modules And Modems Feature Summary

• Integrates nRF52840 SoC for high-performance BLE 5.4 connectivity
• Supports multiple data rates including 2Mbps for efficient throughput
• Features integrated PCB antenna for compact design

RF Transceiver Modules And Modems Applications

• IoT sensor nodes requiring low power consumption
• Wearable health monitoring devices
• Smart home automation controllers

RF Transceiver Modules And Modems Procurement Notes

Verify the specific suffix against official MinewSemi documentation to confirm antenna type and interface configuration. Ensure compatibility with target firmware environments given the nRF52840 architecture. Cross-reference pinouts and voltage levels with system requirements before integration.

RF Transceiver Modules And Modems Selection Notes

Choose this module for applications demanding BLE 5.4 compliance and substantial memory resources. The nRF52840 basis offers robust processing capabilities compared to lower-tier alternatives. Consider the integrated PCB antenna when RF layout constraints are tight.

RF Transceiver Modules And Modems Part Context

This component belongs to the MS88SF3 series of Bluetooth modules from MinewSemi. It leverages the Nordic Semiconductor nRF52840 chipset, positioning it as a mid-to-high performance option within their portfolio for complex wireless applications.

RF Transceiver Modules And Modems Replacement Considerations

Direct substitutes include other nRF52840-based modules such as the MS88SF3-1Y33AIR variants, provided antenna and interface differences are accounted for.
