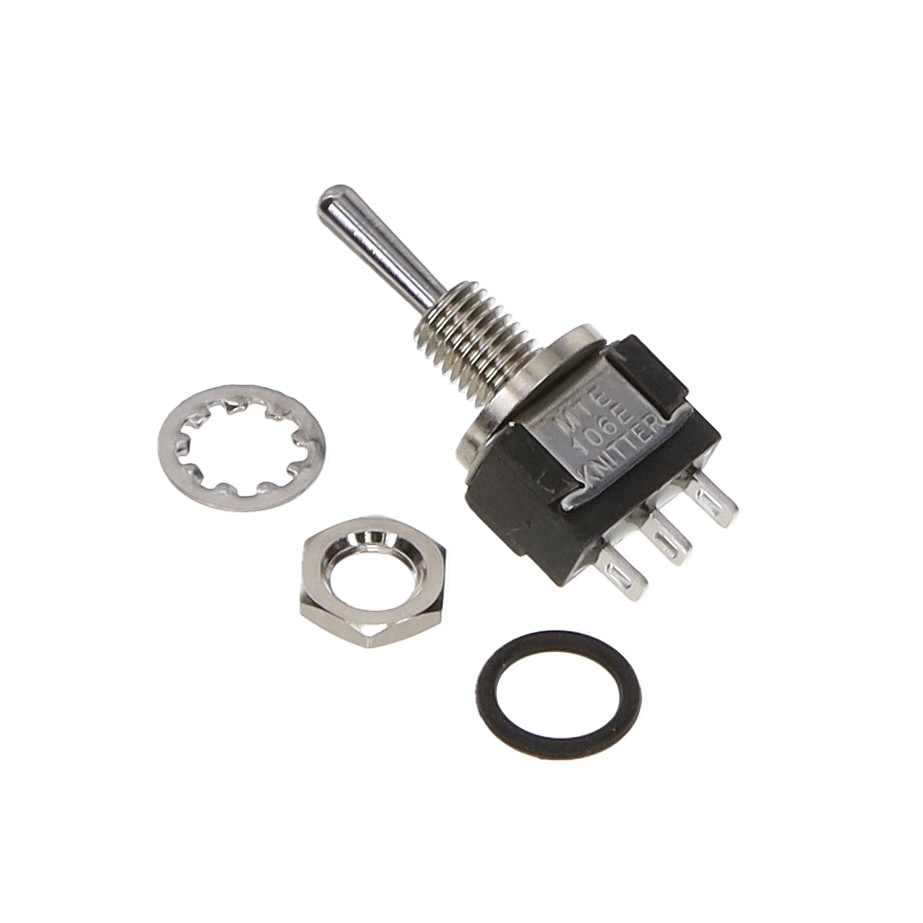

MTE 106 E

MTE 106 E is listed in the Toggle Switches range at ChipApex. The manufacturer field lists Knitter-Switch. Its product description is SWITCH TOGGLE 1-POLE ON OFF ON. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for MTE 106 E

• Description：SWITCH TOGGLE 1-POLE ON OFF ON
• Series：MTE
• Mfr：Knitter-Switch
• Package：Box
• Mounting Type：Panel Mount
• Circuit：SPDT
• Switch Function：On-Off-On
• Current Rating (Amps)：6A (AC), 4A (DC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：30 V
• Actuator Type：Standard Round
• Actuator Length：10.50mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Solder Lug
• Panel Cutout Dimensions：Circular - 6.20mm Dia
• Bushing Thread：M6 x 0.75
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：-
• Operating Temperature：-45°C ~ 140°C

Toggle Switches datasheet and documents for MTE 106 E
