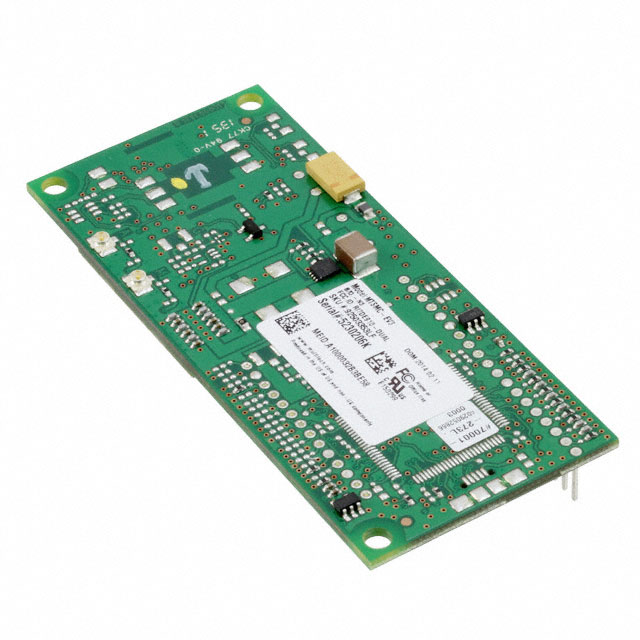

MTSMC-EV3-N3-SP

RF Transceiver Modules And Modems Overview

The MTSMC-EV3-N3-SP is a cellular RF transceiver module manufactured by Multi-Tech Systems Inc. It operates at frequencies of 800MHz and 1.9GHz, supporting EV-DO protocols. The module provides a maximum data rate of 921.6kbps with an output power of 32dBm and a sensitivity of -110dBm. It features a UART serial interface and utilizes a U.FL connector for antenna attachment. The component is designed for through-hole mounting.

RF Transceiver Modules And Modems Feature Summary

• Supports EV-DO cellular communication protocols
• Integrated RF transceiver functionality
• Through-hole mounting configuration

RF Transceiver Modules And Modems Applications

• Cellular data transmission systems
• IoT connectivity modules
• Remote monitoring devices

RF Transceiver Modules And Modems Procurement Notes

Verify the specific revision level and manufacturing date code upon procurement to ensure compatibility with existing system designs. Confirm that the UART interface requirements align with the host controller's serial port specifications. Check for any recent product change notifications or end-of-life announcements from the manufacturer regarding this specific part number before finalizing supply chain decisions.

RF Transceiver Modules And Modems Selection Notes

Select this module when EV-DO protocol support at 800MHz and 1.9GHz is required. Ensure the design accommodates the 32dBm output power and -110dBm sensitivity characteristics. Verify that the UART interface matches the system's communication needs and that the through-hole form factor fits the PCB layout constraints.

RF Transceiver Modules And Modems Part Context

This component belongs to the SocketModem family of cellular communication modules from Multi-Tech Systems. It is distinct from other variants such as the MTSMC-EV3-IP-N3-SP which includes USB interfaces. The module serves as a dedicated cellular modem solution for embedded applications requiring reliable wireless data connectivity.

RF Transceiver Modules And Modems Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consider evaluating the MTSMC-EV3-IP-N3-SP if USB interface capability is needed instead of UART. Consult official manufacturer channels for current alternative recommendations.
