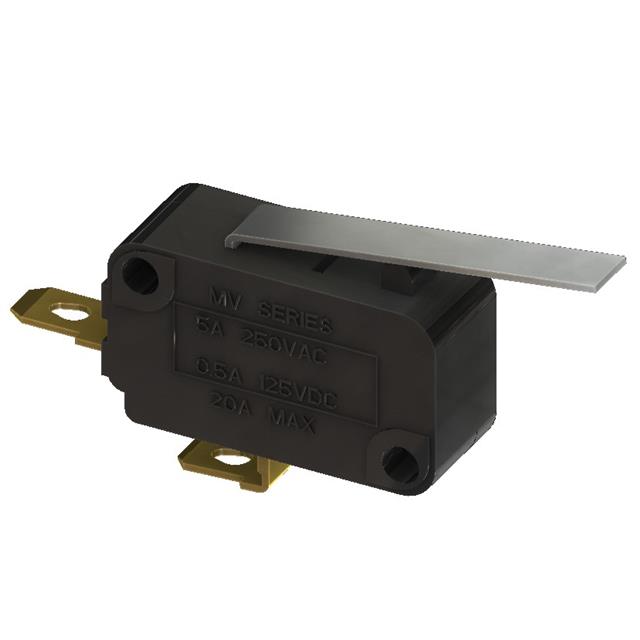

MV-3003A-NO

MV-3003A-NO is listed in the Limit Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is SWITCH SNAP ACT SPST-NO 5A 250V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for MV-3003A-NO

• Description：SWITCH SNAP ACT SPST-NO 5A 250V
• Series：MV
• Mfr：Moujen
• Package：Retail Package
• Circuit：SPST-NO
• Switch Function：On-Mom
• Current Rating (Amps)：5A (AC), 500mA (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Lever, Straight
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.187" (4.7mm)
• Ingress Protection：IP40
• Features：-
• Operating Force：140gf
• Release Force：20gf
• Pretravel：0.157" (4.0mm)
• Differential Travel：0.060" (1.5mm)
• Overtravel：0.063" (1.6mm)
• Operating Temperature：-20°C ~ 80°C
• Voltage Rating - DC：125 V

Limit Switches datasheet and documents for MV-3003A-NO
