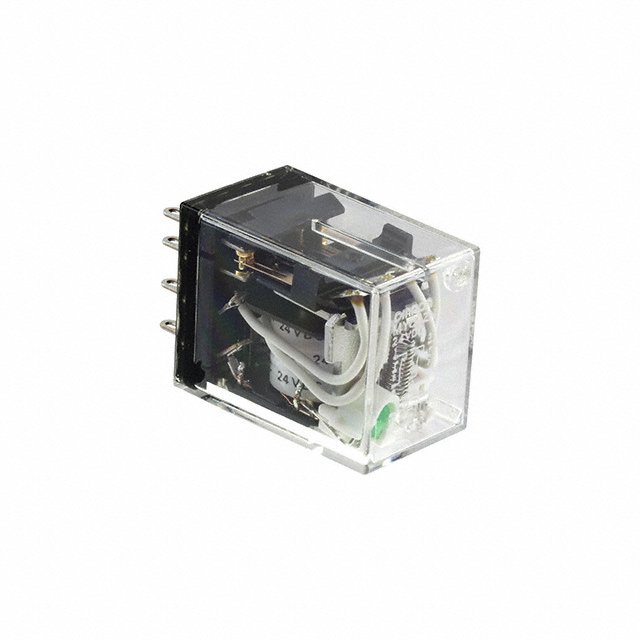

Signal Relays, Up To 2 Amps MYQ4ZN DC24 product image

MYQ4ZN DC24

$24.32

Description：RELAY GEN PURPOSE 4PDT 1A 24V
Series：MY
Mfr：Omron Automation and Safety
Package：Bulk

SKU:b682166063c5 Category: Signal Relays, Up to 2 Amps Brand: Omron Automation and Safety

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MYQ4ZN DC24 is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists Omron Automation and Safety. Its product description is RELAY GEN PURPOSE 4PDT 1A 24V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for MYQ4ZN DC24

Description：RELAY GEN PURPOSE 4PDT 1A 24V
Series：MY
Mfr：Omron Automation and Safety
Package：Bulk
Mounting Type：Socketable
Coil Voltage：24VDC
Contact Form：4PDT (4 Form C)
Contact Rating (Current)：1:00 AM
Switching Voltage：250VAC, 125VDC - Max
Load - Max Switching：250VA, 125W
Coil Current：36.9 mA
Coil Type：Non Latching
Features：Lighted Indicator
Termination Style：Plug In
Seal Rating：Sealed - Fully
Coil Insulation：-
Must Operate Voltage：19.2 VDC
Must Release Voltage：2.4 VDC
Operate Time：20 ms
Release Time：20 ms
Operating Temperature：-55°C ~ 60°C
Contact Material：Silver (Ag), Gold (Au)
Approval Agency：CSA, UR
Relay Type：General Purpose
Grade：-
Qualification：-

Signal Relays, Up To 2 Amps datasheet and documents for MYQ4ZN DC24

MYQ4ZN DC24
