NBPMLNN060PGUNV

Pressure Sensors Transducers Overview

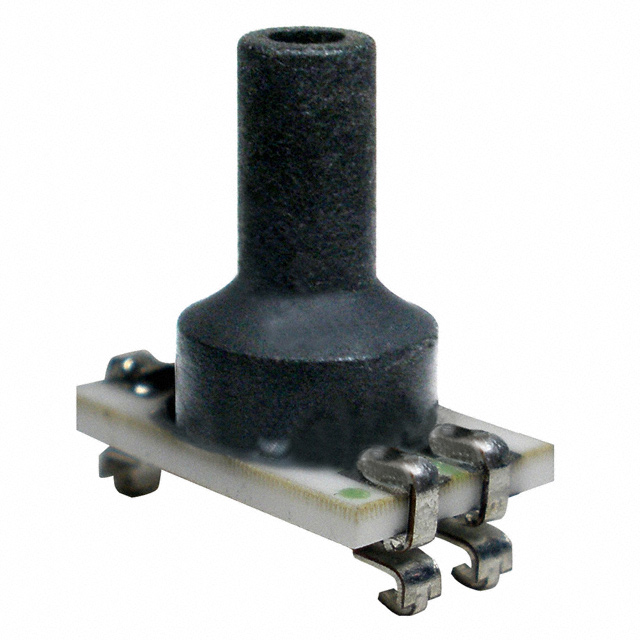

The Honeywell NBPMLNN060PGUNV is a board-mount pressure sensor from the NBP series, designed for gauge pressure measurement. It features a single axial barbless port and operates within a supply voltage range of 3.0 V to 3.6 V. The device provides an analog output with a maximum accuracy of 0.25%. It is rated for a working pressure of 60 psi and functions reliably across a temperature range of -40°C to +85°C.

Pressure Sensors Transducers Feature Summary

• Barbless port design for secure tubing connection
• Temperature compensated for stable performance
• Analog output signal generation

Pressure Sensors Transducers Applications

• Board mount pressure sensing systems
• Industrial process control monitoring
• HVAC pressure detection applications

Pressure Sensors Transducers Procurement Notes

Verify component authenticity through authorized distributors. Confirm RoHS compliance status prior to integration. Check current lifecycle status as availability may vary. Ensure storage conditions meet moisture sensitivity level requirements. Validate pinout compatibility with target PCB layout.

Pressure Sensors Transducers Selection Notes

Select this model for applications requiring 60 psi gauge pressure measurement. Consider the analog output type for signal conditioning needs. Evaluate the operating temperature range against environmental conditions. Verify supply voltage constraints match system power architecture.

Pressure Sensors Transducers Part Context

This component belongs to the NBP series of basic pressure sensors manufactured by Honeywell Sensing and Productivity Solutions. The series offers board-mount solutions for various industrial sensing applications. The part utilizes surface mount technology for automated assembly processes.

Pressure Sensors Transducers Replacement Considerations

NBPMLNN015PGUNV: Lower pressure rating (15 psi). ABPMLNV060PGAA3: Different series with similar pressure rating but distinct interface characteristics.
