Product Detailed Parameters

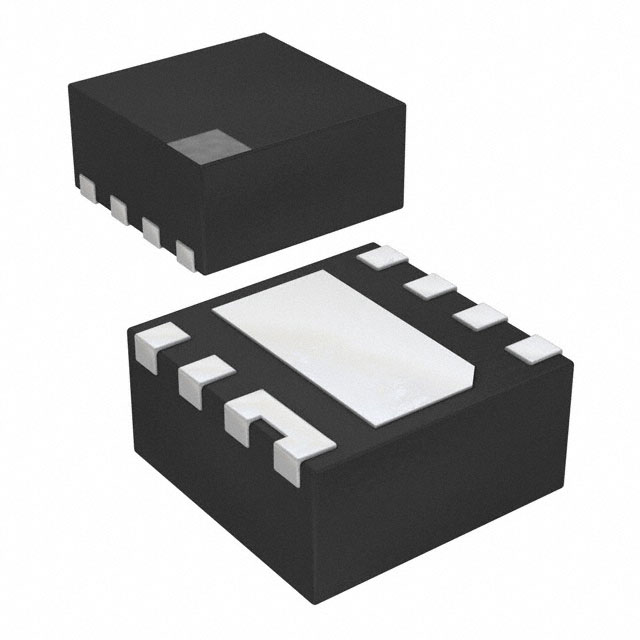

- Description：IC PWR SWITCH N-CHAN 1:1 8DFN
- Series：ecoSWITCH™
- Mfr：onsemi
- Package：Tape & Reel (TR),Cut Tape (CT)
- Switch Type：General Purpose
- Number of Outputs：1
- Ratio - Input:Output：1:01
- Output Configuration：High Side
- Output Type：N-Channel
- Interface：On/Off
- Voltage - Load：0.5V ~ 13.5V
- Voltage - Supply (Vcc/Vdd)：3V ~ 5.5V
- Current - Output (Max)：6A
- Rds On (Typ)：18mOhm
- Input Type：Non-Inverting
- Features：Slew Rate Controlled
- Fault Protection：-
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Supplier Device Package：8-DFN (2x2)
- Package / Case：8-VFDFN Exposed Pad
- Grade：-
- Qualification：-
Download product information
Overview
The NCP45525IMNTWG-L is a single-output controlled load switching power supply chip manufactured by onsemi. It features an on-resistance of 7mΩ and supports surface mount installation in an 18-pin QFN package measuring 3 x 3 x 0.95mm. The device operates within a temperature range of 0°C to +70°C and has a rated power of 1.98W.
Feature Summary
- Integrated controlled load switching capability for power distribution management
- Low on-resistance design for efficient power handling
- Compact QFN footprint suitable for space-constrained applications
Applications
- Power distribution systems requiring controlled load switching
- Electronic equipment utilizing surface mount power ICs
- Applications operating within standard commercial temperature ranges
Procurement Notes
Verify the specific suffix (L) against official datasheets to confirm exact electrical tolerances and packaging specifications. Ensure compatibility with the target PCB layout for the 18-pin QFN package. Cross-reference thermal requirements with the stated operating temperature limits before integration into final designs.
Selection Notes
Select this component when a single-channel controlled load switch is required with low on-resistance characteristics. Consider the 18-pin QFN package constraints and the 1.98W power rating relative to system demands. Verify that the operational environment remains within the specified 0°C to +70°C range for reliable performance.
Part Context
This part belongs to the NCP45525 series of power distribution ICs from onsemi. It is designed for managing power loads in electronic systems, offering a compact solution compared to discrete switching components. The series typically integrates protection features and control logic for efficient power management.
Replacement Considerations
Check for direct substitutes within the NCP45525 family or similar controlled load switches from other manufacturers. Ensure pinout compatibility and equivalent electrical parameters such as on-resistance and package dimensions are met.
