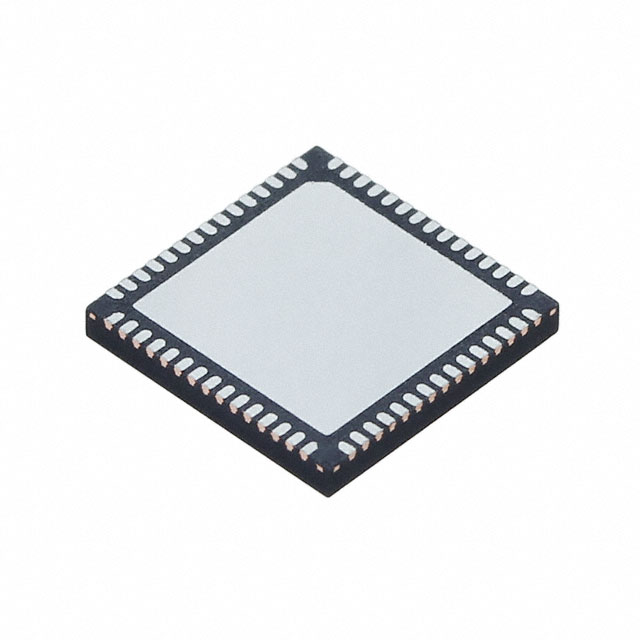

NCP6132AMNR2G

Special Purpose Regulators Overview

The NCP6132AMNR2G is a dual-output switching controller designed for Intel IMVP-7 and VR12 compatible CPUs. It provides a three-phase output for Vcore and a two-phase output for Vtt/Vmem. The device features a single SVID interface for configuration and monitoring. It operates with a switch frequency range of 200 kHz to 1 MHz. The component is housed in a QFN-60 package suitable for surface mount installation.

Special Purpose Regulators Feature Summary

• Dual output architecture supporting three-phase Vcore and two-phase Vtt/Vmem generation
• Single Serial Voltage Identification (SVID) interface for CPU communication
• Optimized for compatibility with Intel IMVP-7 and VR12 processor specifications

Special Purpose Regulators Applications

• Desktop computer motherboard power systems
• Notebook computer CPU voltage regulation modules
• Intel IMVP-7 compatible processor platforms
• VR12 standard compliant computing applications

Special Purpose Regulators Procurement Notes

Verify current availability status as the product may be subject to discontinuance or limited supply. Confirm that the specific suffix matches the required pinout and thermal characteristics for your PCB layout. Ensure compliance with RoHS directives if applicable to your manufacturing region. Check for any pending Product Change Notifications regarding packaging or material composition updates before finalizing orders.

Special Purpose Regulators Selection Notes

Select this controller when designing power stages for processors requiring IMVP-7 or VR12 compliance. The dual-output capability simplifies board design by integrating both core and memory voltage control. Consider the QFN-60 package size for thermal management requirements. Verify that the target CPU supports the single SVID interface protocol used by this device for dynamic voltage scaling.

Special Purpose Regulators Part Context

This component belongs to the NCP6132 series of power management integrated circuits from onsemi. The series includes variants such as NCP6132BDMNR2G and NCP6132BMNR2G, which share similar functional descriptions but may differ in specific electrical parameters or package options. These devices are categorized under PMIC - Power Management ICs within the manufacturer's portfolio.

Special Purpose Regulators Replacement Considerations

Potential substitutes include NCP6132BDMNR2G and NCP6132BMNR2G. Verify pin compatibility and electrical specifications against the original datasheet before substitution. Other series members like NCP6153MNTWG offer different phase configurations and should be evaluated based on specific load requirements.
