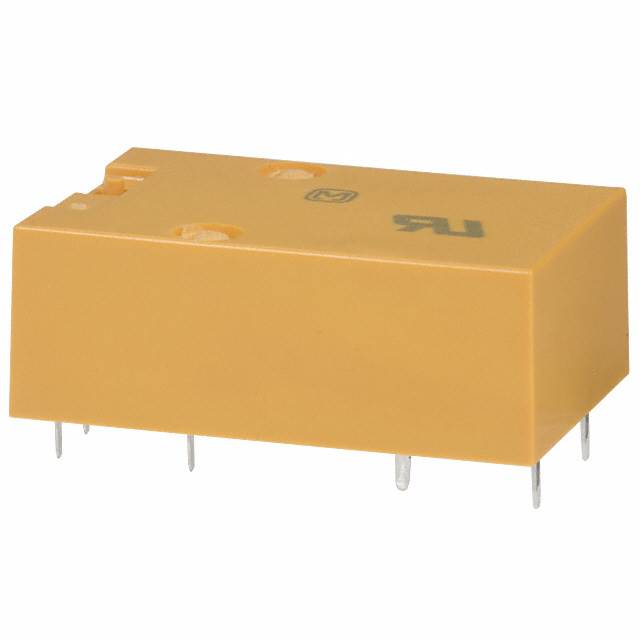

NF2EB-5V

NF2EB-5V is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is RELAY GENERAL PURPOSE DPDT 2A 5V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for NF2EB-5V

• Description：RELAY GENERAL PURPOSE DPDT 2A 5V
• Series：NF
• Mfr：Panasonic Electric Works
• Package：Tube
• Mounting Type：Through Hole
• Coil Voltage：5VDC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：2:00 AM
• Switching Voltage：220VAC, 220VDC - Max
• Load - Max Switching：-
• Coil Current：55.6 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：4 VDC
• Must Release Voltage：0.5 VDC
• Operate Time：15 ms
• Release Time：10 ms
• Operating Temperature：-40°C ~ 65°C
• Contact Material：Silver (Ag), Gold (Au)
• Approval Agency：CSA, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-

Signal Relays, Up To 2 Amps datasheet and documents for NF2EB-5V
