NMO900

Antennas RF Overview

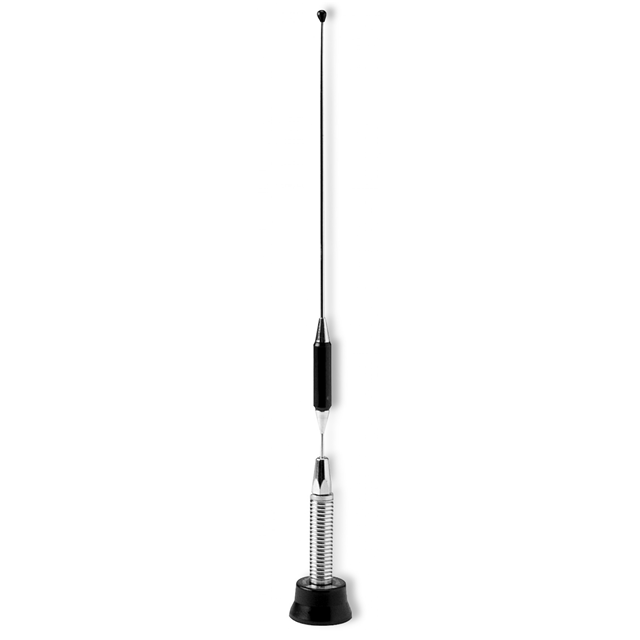

The NMO900 is a straight whip RF antenna manufactured by Pulse Electronics, designed for cellular applications including GSM, LTE, and 2G/3G/4G/5G systems. It operates within the UHF frequency band, specifically covering a range from 890 MHz to 960 MHz with a center frequency of 836 MHz. The component features an NMO magnetic mount interface and provides a gain of 5.6 dBi. It supports a maximum output power of 200 W and is constructed with a stainless steel spring base and whip assembly.

Antennas RF Feature Summary

• Straight whip design with stainless steel construction
• NMO magnetic mounting interface
• Optimized for cellular communication bands

Antennas RF Applications

• GSM network installations
• LTE wireless systems
• 2G/3G/4G/5G mobile communications

Antennas RF Procurement Notes

Verify the specific datasheet version and RoHS compliance status before procurement, as regulatory details may vary. Confirm that the NMO magnetic mount is suitable for the intended vehicle or surface application. Ensure the operating frequency range aligns with local cellular spectrum allocations. Check for any regional distribution restrictions or lead time variations associated with this part number.

Antennas RF Selection Notes

Select the NMO900 when a high-gain, omnidirectional cellular antenna is required for mobile platforms. The 5.6 dBi gain and 200 W power handling make it suitable for robust signal transmission in challenging environments. The magnetic mount allows for non-permanent installation on metal surfaces. Consider the physical height and wind load requirements if deploying in exposed outdoor conditions.

Antennas RF Part Context

This component belongs to the Pulse Electronics cellular antenna family, which includes various models like NMO800B and NMO3HD900B. These antennas are categorized under UHF frequencies and are engineered for reliable performance in mobile telecommunications infrastructure. The NMO900 specifically targets the 890-960 MHz segment, distinguishing it from lower-frequency variants in the same product line.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. For functional equivalents, consider other Pulse Electronics NMO-mount antennas such as the NMO800B, though frequency ranges and gain specifications must be verified against specific system requirements.
