NTMFSC2D6N08XTWG

Single FETs, MOSFETs Overview

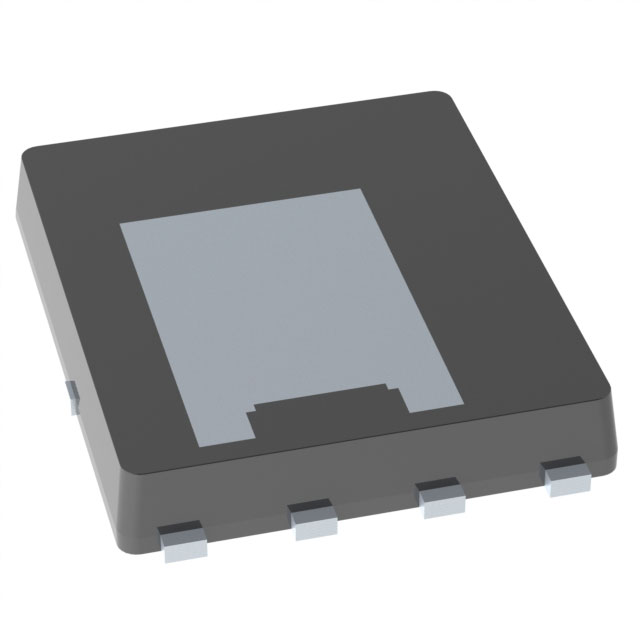

The onsemi NTMFSC2D6N08XTWG is a single N-channel Power MOSFET from the POWERTRENCH T10 series, designed for high-efficiency power switching. It features an 80V drain-source breakdown voltage and a maximum continuous drain current of 154A at case temperature. The device exhibits a low on-resistance (RDS(on)) of 2.6mΩ typical value. Packaged in a DFN-8 (5x6mm) surface-mount format, it supports tape and reel delivery.

Single FETs, MOSFETs Feature Summary

• Utilizes Dual-Cool technology with optimized top-side heat dissipation for enhanced thermal performance
• Features low gate charge characteristics to minimize switching losses during operation
• Incorporates soft-body diode recovery to reduce voltage spikes without requiring external snubber circuits

Single FETs, MOSFETs Applications

• Motor drives for industrial and consumer equipment
• Battery protection systems in electric vehicles and energy storage
• Synchronous rectification in DC/DC and AC/DC power conversion modules
• Automotive and industrial power management architectures

Single FETs, MOSFETs Procurement Notes

Verify the complete part number including the TWG suffix to ensure compliance with lead-free and halogen-free manufacturing standards. Confirm the specific package variant matches the required footprint. Check official documentation for tape and reel specifications regarding orientation and quantity per reel before finalizing procurement orders.

Single FETs, MOSFETs Selection Notes

Select this component for applications requiring compact form factors alongside high current handling capabilities. The dual-cool packaging allows for efficient thermal management through both the bottom and top surfaces. Ensure the design accounts for the specific thermal resistance values provided in the datasheet to maintain junction temperatures within safe operating limits under peak load conditions.

Single FETs, MOSFETs Part Context

This device belongs to the onsemi POWERTRENCH T10 family of single N-channel MOSFETs. These components are engineered to deliver superior efficiency compared to previous generations by combining low on-resistance with optimized gate charge properties. The series targets demanding power switching environments where space constraints and thermal density are critical design parameters.

Single FETs, MOSFETs Replacement Considerations

Direct substitutes within the same series include NTMFS4D0N08XT1G or NTMFS4D5N08XT1G, though these feature different package types such as SO-8FL or DFN-5. Verify pin compatibility and thermal characteristics when considering alternative packages from the broader NTMFS4D product line.
