O 10,0-JT32C-A-K-3,3-LF

Oscillators Overview

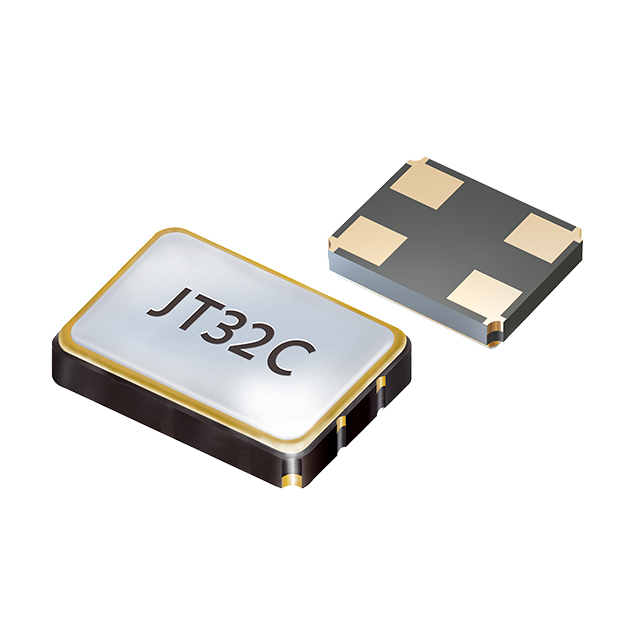

The O 10,0-JT32C-A-K-3,3-LF is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by Jauch Quartz. It operates at a nominal frequency of 10 MHz with an HCMOS output waveform. The device requires a 3.3V supply voltage and features a maximum current consumption of 5.5mA. Frequency stability is specified at ±2.5ppm over the operating temperature range of -40°C to +85°C. The component utilizes a 4-SMD, No Lead package with physical dimensions of 3.20mm x 2.50mm.

Oscillators Feature Summary

• Integrated temperature compensation for high frequency stability
• HCMOS logic output interface
• Supports enable/disable control function

Oscillators Applications

• Embedded systems requiring precise clock timing
• Industrial equipment with wide temperature requirements
• Telecommunications infrastructure components

Oscillators Procurement Notes

Verify the specific ordering suffix against the official JT32C datasheet to confirm that the selected variant matches the required electrical parameters and pin configuration. Ensure compatibility with the target system's voltage levels and thermal environment before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a stable 10 MHz reference signal is required in space-constrained designs. The TCXO technology provides superior performance compared to standard crystals in varying thermal conditions. Verify that the HCMOS output swing aligns with the receiving circuit's input thresholds.

Oscillators Part Context

This oscillator belongs to the JT32C series, which offers compact surface-mount solutions for precision timing applications. The series is designed to meet the demands of modern electronics requiring low power consumption and high reliability within a small footprint.

Oscillators Replacement Considerations

Consult the manufacturer's cross-reference documentation for verified substitute part numbers. Direct replacements must maintain identical frequency, stability, package dimensions, and electrical characteristics to ensure functional equivalence.
