O 50,0-JT22S-B-K-3,3-LF

Oscillators Overview

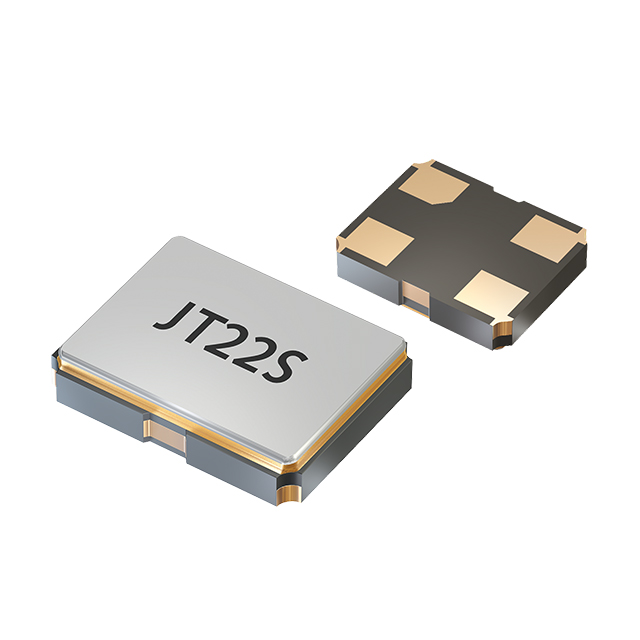

The O 50,0-JT22S-B-K-3,3-LF is a temperature-compensated crystal oscillator (TCXO) from the Jauch Quartz JT22S series. It operates at a nominal frequency of 50 MHz with a clipped sine wave output. The device requires a 3.3V supply and draws a maximum current of 2.5mA. It features a frequency stability of ±2ppm and functions within an operating temperature range of -40°C to 85°C. The component utilizes a surface-mount 4-SMD, no-lead package with dimensions of 2.50mm x 2.00mm x 0.90mm.

Oscillators Feature Summary

• Temperature compensation ensures stable frequency performance across wide thermal variations
• Compact surface-mount footprint designed for space-constrained electronic assemblies
• Low power consumption suitable for battery-operated or energy-efficient systems

Oscillators Applications

• Telecommunications equipment requiring precise timing signals
• Embedded systems utilizing high-frequency clock sources
• Consumer electronics needing compact oscillator solutions

Oscillators Procurement Notes

Verify the specific frequency tolerance and load capacitance requirements against your circuit design before procurement. Confirm that the 3.3V supply voltage aligns with your system's power rails. Ensure the 4-SMD no-lead package footprint matches your PCB layout guidelines. Check for RoHS compliance documentation if required by your manufacturing standards.

Oscillators Selection Notes

Select this model when a 50 MHz clock source with ±2ppm stability is required in a small form factor. Consider the JT22S series for applications demanding low power draw and wide temperature operation. Compare against other series like JT33 if different package sizes or frequencies are needed. Ensure the clipped sine wave output is compatible with the input requirements of the downstream logic.

Oscillators Part Context

This component belongs to the JT22S series of temperature-compensated crystal oscillators manufactured by Jauch Quartz. The series offers various frequencies and package options tailored for modern electronics. The JT22S line specifically targets applications requiring high stability in a compact SMD package. It complements other Jauch oscillator families by providing specialized performance characteristics for 50 MHz operations.

Oscillators Replacement Considerations

Direct substitutes include other 50 MHz TCXOs with identical pinouts and electrical specifications. Verify compatibility with the JT22S series variants from Jauch Quartz. Cross-reference with equivalent models from other manufacturers ensuring matching frequency, voltage, and stability ratings.
