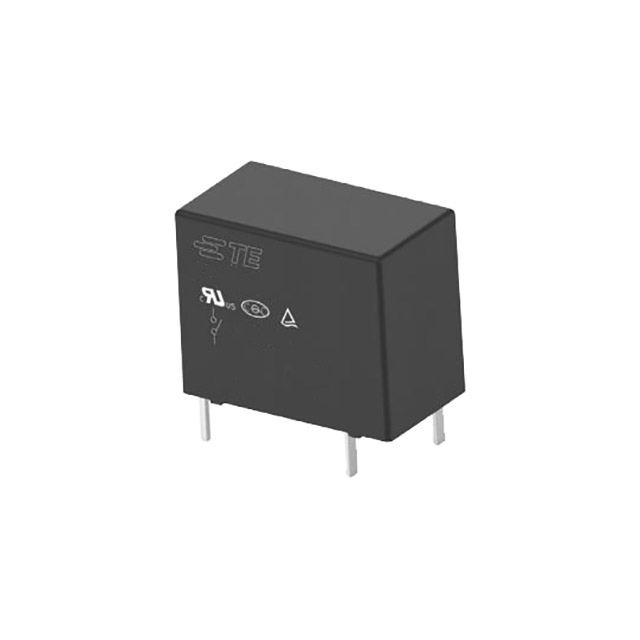

OJS-SH-112HEF, 00000

OJS-SH-112HEF, 00000 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE SPST 16A 12V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for OJS-SH-112HEF, 00000

• Description：RELAY GEN PURPOSE SPST 16A 12V
• Series：OJS, OEG
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Tray
• Mounting Type：Through Hole
• Coil Voltage：12VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：16 A
• Switching Voltage：250VAC - Max
• Load - Max Switching：4000VA
• Coil Current：37.5 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Fully
• Coil Insulation：Class F
• Must Operate Voltage：9 VDC
• Must Release Voltage：0.6 VDC
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Tin Oxide Indium Oxide (AgSnOInO)
• Approval Agency：CQC, cURus, TUV
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：15 ms
• Release Time：4 ms

Power Relays, Over 2 Amps datasheet and documents for OJS-SH-112HEF, 00000
