OYEBCJJANF-40.000000

Oscillators Overview

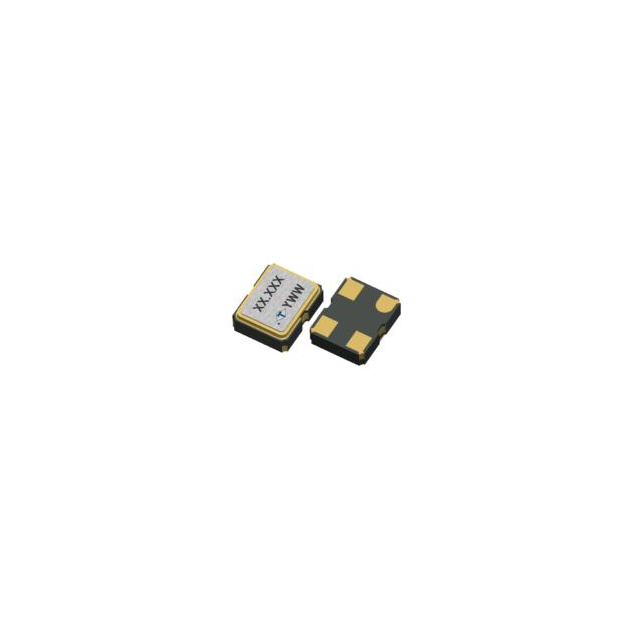

The OYEBCJJANF-40.000000 is a standard crystal oscillator manufactured by Taitien, designed for surface-mount technology applications. It operates at a nominal frequency of 40 MHz with CMOS output mode, ensuring compatibility with digital logic circuits. The device functions within a supply voltage range of 2.8V to 3.3V and features enable/disable control capabilities for power management efficiency. Packaged in a compact 4-SMD, No Lead configuration, it supports reliable integration into space-constrained electronic designs requiring precise timing signals.

Oscillators Feature Summary

• CMOS output mode compatible with standard digital interfaces
• Enable and disable functionality for dynamic power control
• Surface-mount package optimized for automated assembly processes

Oscillators Applications

• General-purpose digital circuit timing
• Embedded systems requiring stable clock sources
• Consumer electronics with space constraints

Oscillators Procurement Notes

Verify the specific operating temperature range and stability specifications against the official Taitien datasheet before procurement. Confirm that the 2.8V to 3.3V supply voltage aligns with the target system's power rails. Ensure the CMOS output level matches the input requirements of the receiving component to guarantee signal integrity and proper operation in the final application.

Oscillators Selection Notes

Select this component when a standard 40 MHz clock source with low profile and enable control is required. Consider the CMOS output type for direct interfacing with microcontrollers or FPGAs. Evaluate the 4-SMD footprint against available PCB real estate. Verify that the standard crystal oscillator performance meets the jitter and stability requirements of the specific application environment.

Oscillators Part Context

This part belongs to Taitien’s line of surface-mount oscillators, offering a balance of performance and size. The OYEBC series typically provides standard timing solutions for mass-market electronics. The 40 MHz frequency is commonly used for processor clocks and communication interfaces. The enable feature adds flexibility for battery-powered devices needing power optimization during idle states.

Oscillators Replacement Considerations

Check for pin-compatible alternatives from other manufacturers if supply chain issues arise. Ensure replacement parts maintain the same CMOS output type and voltage range. Verify that any substitute oscillator meets the same mechanical dimensions and mounting requirements to avoid PCB redesign.
