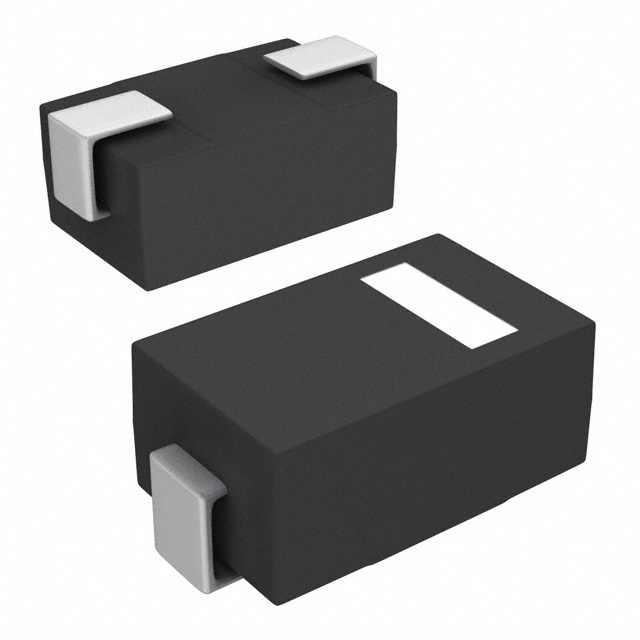

P4SMA110A BK

P4SMA110A BK is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Central Semiconductor Corp. Its product description is TVS DIODE 110VWM 177VC SMA. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for P4SMA110A BK

• Description：TVS DIODE 110VWM 177VC SMA
• Series：-
• Mfr：Central Semiconductor Corp
• Package：Bulk
• Type：Zener
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：110V
• Voltage - Breakdown (Min)：122V
• Voltage - Clamping (Max) @ Ipp：177V
• Current - Peak Pulse (10/1000µs)：2.3A
• Power - Peak Pulse：400W
• Power Line Protection：No
• Applications：General Purpose
• Capacitance @ Frequency：-
• Operating Temperature：-55°C ~ 150°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：DO-214AC, SMA
• Supplier Device Package：SMA
• Unidirectional Channels：1
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for P4SMA110A BK
