PA3342NL

Pulse Transformers Overview

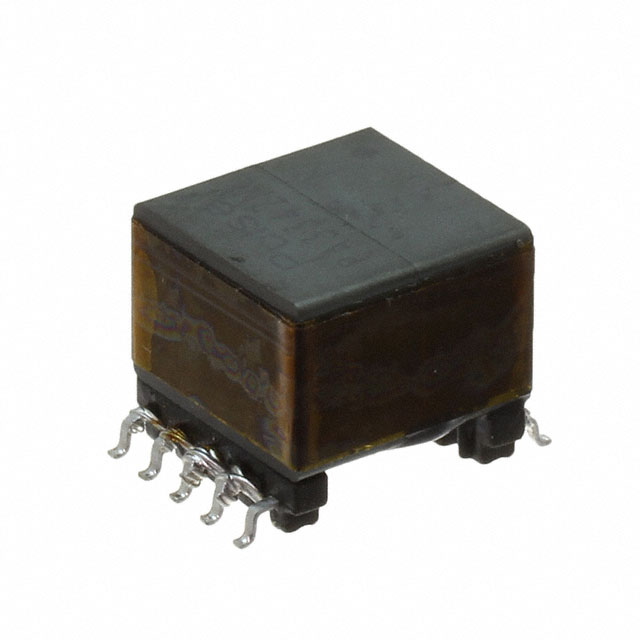

The PA3342NL is a surface-mount pulse transformer manufactured by Pulse Electronics, designed for high-frequency applications. It features an inductance of 90 µH and operates within a temperature range of -40°C to +130°C. The component utilizes the EP13 platform with a maximum height of 12.7 mm and a footprint of 17.7 mm x 14.0 mm. It supports power ranges up to 60W and complies with RoHS3 standards.

Pulse Transformers Feature Summary

• High-frequency wire-wound construction optimized for SMT assembly
• EP13 platform design supporting power levels up to 60W
• Wide operating temperature range from -40°C to +130°C

Pulse Transformers Applications

• Board mount forward converter circuits
• High-frequency signal isolation
• Power supply transformer stages

Pulse Transformers Procurement Notes

Verify the manufacturer part number PA3342NL against official Pulse Electronics documentation to confirm specifications. Ensure compatibility with the EP13 platform footprint dimensions of 17.7 mm x 14.0 mm and height limit of 12.7 mm. Confirm RoHS3 compliance status and check for any specific solder reflow profile requirements during procurement validation.

Pulse Transformers Selection Notes

Select this component for applications requiring a 90 µH inductance in a surface-mount form factor. Consider the EP13 package size constraints and the specified temperature range of -40°C to +130°C. Verify that the 60W power handling capability meets the circuit requirements and that the forward topology aligns with the design architecture.

Pulse Transformers Part Context

The PA3342NL belongs to the Pulse Transformers category, specifically categorized as a high-frequency wire-wound transformer on the EP13 platform. It is distinct from other Pulse products like the PA4342 series power inductors or PA2743 common mode chokes. This part is intended for board-mounted applications requiring specific magnetic isolation characteristics.

Pulse Transformers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official distributor databases or manufacturer cross-reference lists for potential alternatives.
