PB2089NL

$3.82

Description：PULSE XFMR 112UH
Series：EP13
Mfr：Pulse Electronics
Package：Tray

SKU:6a30e91c4a3e Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PB2089NL is listed in the Pulse Transformers range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is PULSE XFMR 112UH. Review the specifications below when checking this part for your BOM.

Pulse Transformers specifications for PB2089NL

Description：PULSE XFMR 112UH
Series：EP13
Mfr：Pulse Electronics
Package：Tray
Transformer Type：-
Inductance：112µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：-
Mounting Type：Surface Mount
Size / Dimension：0.860" L x 1.150" W (21.84mm x 29.21mm)
Height - Seated (Max)：0.450" (11.43mm)
Operating Temperature：-40°C ~ 125°C
Grade：-
Qualification：-

Pulse Transformers datasheet and documents for PB2089NL

PB2089NL

Pulse Transformers Overview

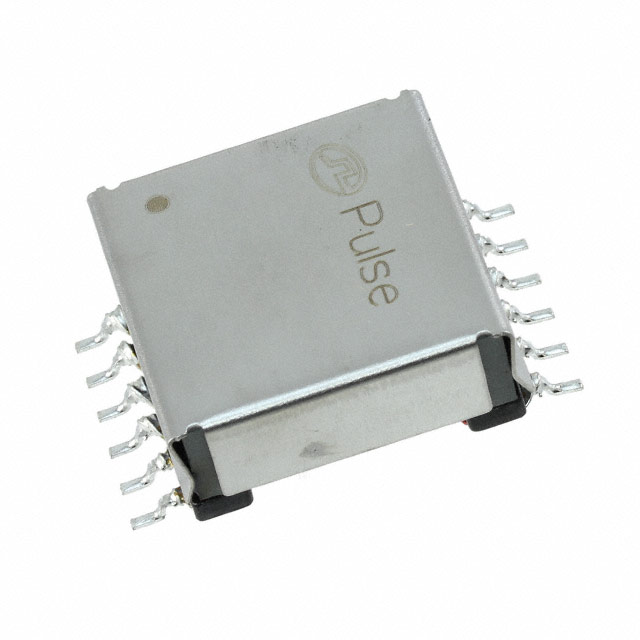

The PB2089NL is a pulse transformer manufactured by Pulse Electronics, designed for surface-mount applications. It features an inductance of 112µH and belongs to the EP13 series. The component utilizes an EFD20-SMD core configuration with a 12-pin layout. Its physical dimensions are 0.860 inches in length, 1.150 inches in width, and a maximum seated height of 0.450 inches (11.43mm). The device operates within a temperature range of -40°C to 125°C and complies with RoHS3 standards.

Pulse Transformers Feature Summary

Surface-mount construction for automated assembly integration
High-frequency wire-wound transformer design
EFD20-SMD core configuration ensuring compact footprint

Pulse Transformers Applications

High frequency power supply circuits
Signal isolation interfaces
Pulse transformation in switching regulators

Pulse Transformers Procurement Notes

Verify the specific datasheet version and pinout configuration against your schematic before ordering. Confirm that the 12-pin SMD package aligns with your PCB land pattern requirements. Ensure the operating temperature range meets your environmental specifications. Check for any recent manufacturing updates or compliance certifications required for your region.

Pulse Transformers Selection Notes

Select this component when a compact, high-frequency pulse transformer is required for surface-mount technology. The 112µH inductance value suits specific impedance matching needs. Consider the EP13 series characteristics for thermal performance. Evaluate the 12-pin layout against available board space constraints.

Pulse Transformers Part Context

This part is part of Pulse Electronics' portfolio of high-frequency wire-wound transformers. It serves as a specialized solution for applications requiring precise pulse transmission in a small form factor. The EP13 series designation indicates its specific core geometry and performance class within the manufacturer's catalog.
