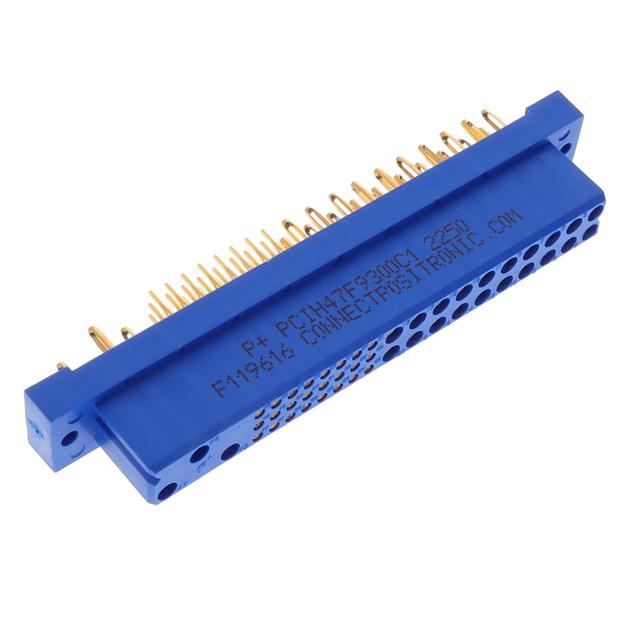

Specialized Backplane Connectors PCIH47F9300C1 product image

PCIH47F9300C1

$105.72

Description：BACKPLANE
Series：PCIH
Mfr：Amphenol Positronic
Package：Tray

SKU:e837ddff7c65 Category: Specialized Backplane Connectors Brand: Amphenol Positronic

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PCIH47F9300C1 is listed in the Specialized Backplane Connectors range at ChipApex. The manufacturer field lists Amphenol Positronic. Its product description is BACKPLANE. Review the specifications below when checking this part for your BOM.

Specialized Backplane Connectors specifications for PCIH47F9300C1

Description：BACKPLANE
Series：PCIH
Mfr：Amphenol Positronic
Package：Tray
Connector Usage：-
Connector Type：Receptacle, Female Sockets
Connector Style：CompactPCI®
Number of Positions：47
Number of Positions Loaded：All
Pitch：-
Number of Rows：-
Number of Columns：-
Mounting Type：Through Hole
Termination：Solder
Contact Layout, Typical：24 Signal, 23 Power
Features：-
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Color：Blue

Specialized Backplane Connectors datasheet and documents for PCIH47F9300C1

PCIH47F9300C1
