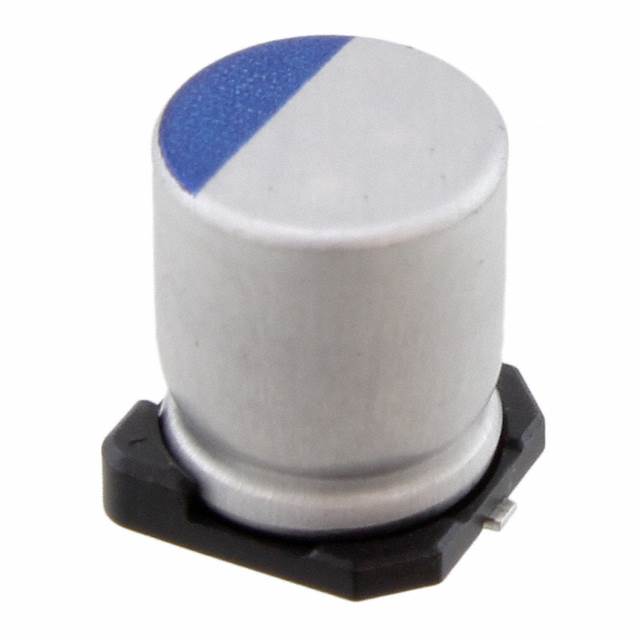

PCX1V390MCL6GS

PCX1V390MCL6GS is listed in the Aluminum - Polymer Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM POLY 39UF 20% 35V SMD. Review the specifications below when checking this part for your BOM.

Aluminum - Polymer Capacitors specifications for PCX1V390MCL6GS

• Description：CAP ALUM POLY 39UF 20% 35V SMD
• Series：PCX
• Mfr：Nichicon
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Polymer
• Capacitance：39 µF
• Tolerance：±20%
• Voltage - Rated：35 V
• ESR (Equivalent Series Resistance)：35mOhm
• Lifetime @ Temp.：3000 Hrs @ 125°C
• Operating Temperature：-55°C ~ 125°C
• Ratings：AEC-Q200
• Applications：General Purpose
• Ripple Current @ High Frequency：1.8 A @ 100 kHz
• Lead Spacing：-
• Size / Dimension：0.315" Dia (8.00mm)
• Height - Seated (Max)：0.394" (10.00mm)
• Surface Mount Land Size：0.327" L x 0.327" W (8.30mm x 8.30mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD
• Ripple Current @ Low Frequency：-
• Features：-

Aluminum - Polymer Capacitors datasheet and documents for PCX1V390MCL6GS
