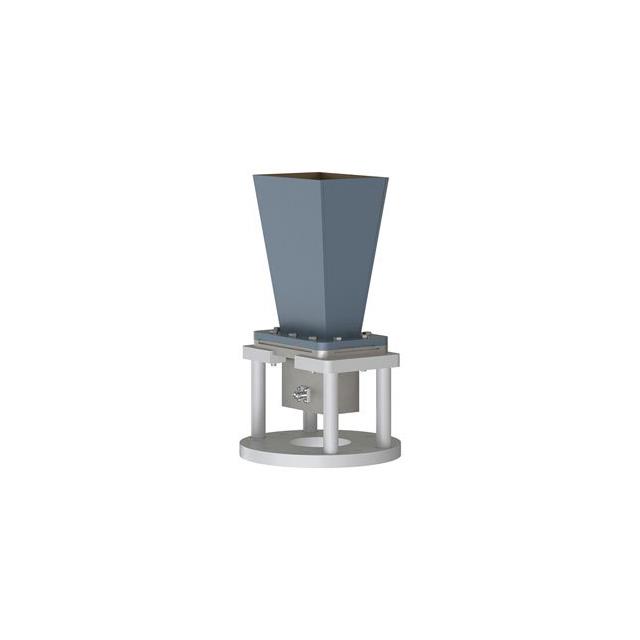

PE1WAN229-10SF

$3,297.32

Description：WR-229 Standard Gain Horn with 1
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:68dfa9816920 Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PE1WAN229-10SF is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is WR-229 Standard Gain Horn with 1. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PE1WAN229-10SF

Description：WR-229 Standard Gain Horn with 1
Series：-
Mfr：Pasternack
Package：Retail Package
RF Family/Standard：General ISM
Frequency Group：Wide Band
Frequency (Center/Band)：4.1GHz
Frequency Range：3.3GHz ~ 4.9GHz
Antenna Type：Horn
Number of Bands：1
VSWR：1.3
Return Loss：-
Gain：10dBi
Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
Termination：SMA Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：5.250" (133.35mm)
Applications：General Purpose
Power - Max：-

Antennas RF datasheet and documents for PE1WAN229-10SF

PE1WAN229-10SF

Antennas RF Overview

The PE1WAN229-10SF is a general-purpose horn antenna manufactured by Pasternack. It features an SMA female connector and is designed for bracket mounting applications. The component operates within the WR229 waveguide frequency range, covering 3.3 GHz to 4.9 GHz. It provides a gain of 20 dBi in this operational band. The antenna is constructed for use in radio frequency and wireless systems requiring directional signal transmission or reception.

Antennas RF Feature Summary

General-purpose horn design optimized for broad application compatibility
SMA female interface for standard cable connectivity
Bracket mount configuration for secure installation

Antennas RF Applications

Radio frequency test and measurement setups
Wireless communication link testing
Broadband signal distribution systems

Antennas RF Procurement Notes

Verify the specific datasheet provided by Pasternack or authorized distributors to confirm mechanical dimensions and connector specifications. Ensure the SMA female interface matches the mating hardware requirements. Confirm that the WR229 frequency range aligns with the intended operational bandwidth. Check for any environmental ratings if outdoor usage is planned.

Antennas RF Selection Notes

Select this model when a 20 dBi gain is required within the 3.3 to 4.9 GHz spectrum. The SMA female connector simplifies integration with standard coaxial cables. Consider the bracket mount style for fixed installations where physical stability is necessary. Evaluate space constraints against the physical size of the horn structure.

Antennas RF Part Context

This component belongs to Pasternack's RF antenna portfolio, specifically focusing on horn antennas for microwave frequencies. It serves as a passive radiating element within larger RF systems. The product line emphasizes standardized interfaces like SMA for ease of integration into existing test equipment and communication architectures.
