PE2WAN042-20ELKF

$2,324.92

Description：WR-42 Standard Gain Horn with 20
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:2b122b094ce2 Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PE2WAN042-20ELKF is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is WR-42 Standard Gain Horn with 20. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PE2WAN042-20ELKF

Description：WR-42 Standard Gain Horn with 20
Series：-
Mfr：Pasternack
Package：Retail Package
RF Family/Standard：General ISM
Frequency Group：Wide Band
Frequency (Center/Band)：22.25GHz
Frequency Range：18GHz ~ 26.5GHz
Antenna Type：Horn
Number of Bands：1
VSWR：1.3
Return Loss：-
Gain：20dBi
Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
Termination：2.92mm Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：4.674" (118.72mm)
Applications：General Purpose
Power - Max：-

Antennas RF datasheet and documents for PE2WAN042-20ELKF

PE2WAN042-20ELKF

Antennas RF Overview

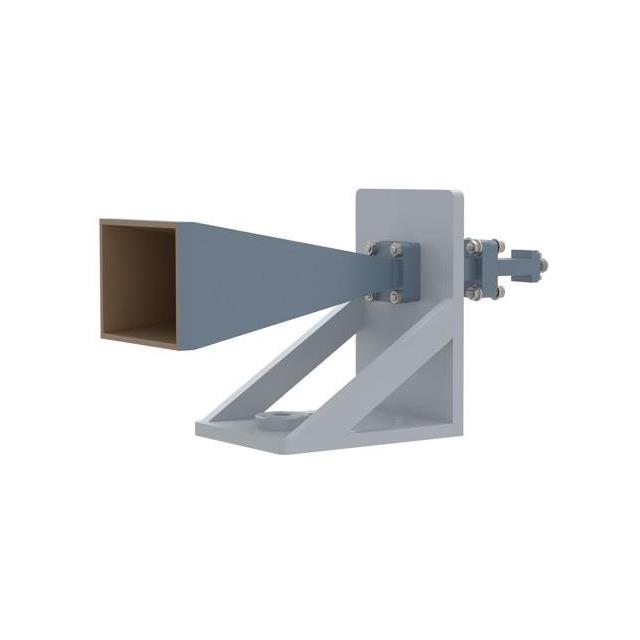

The PE2WAN042-20ELKF is a standard gain horn antenna manufactured by Pasternack. It operates within the frequency range of 18 GHz to 26.5 GHz and features a typical gain of 20 dBi. The component utilizes an end-launch 2.92mm female connector for interface. It is designed with a WR-42 waveguide aperture and includes a pre-installed L-mount bracket for secure installation.

Antennas RF Feature Summary

Standard gain horn design optimized for high-frequency applications
Pre-integrated L-mount bracket for structural stability
End-launch 2.92mm female connector configuration

Antennas RF Applications

Microwave test and measurement setups
Wireless communication system testing
Radar system evaluation

Antennas RF Procurement Notes

Verify the specific connector gender and mounting orientation against your equipment requirements before purchase. Confirm that the operating environment supports the specified frequency range. Ensure compatibility with the 2.92mm interface type. Check for any specific handling instructions regarding the delicate horn structure during installation.

Antennas RF Selection Notes

Select this model when a fixed-gain solution is required for the 18-26.5 GHz band. The integrated mount simplifies alignment compared to separate waveguide components. Consider the physical dimensions of the L-mount bracket to ensure adequate clearance in the assembly space. Verify power handling capabilities if high-power signals are involved.

Antennas RF Part Context

This component belongs to Pasternack's waveguide horn antenna series, which provides standardized radiation patterns for precise microwave characterization. These antennas are commonly used as reference sources or receiving elements in calibrated measurement chains where consistent gain and beamwidth are critical for accurate data acquisition.

Antennas RF Replacement Considerations

Direct substitutes must match the WR-42 waveguide size, 2.92mm connector type, and 20 dBi gain specification. Alternative models may vary in beamwidth or mounting style. Verify that any replacement maintains the same frequency coverage and polarization characteristics to ensure measurement consistency.
