PE51024

$206.85

Description：Patch Panel Antenna Operates Fro
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:30708b67d272 Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PE51024 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is Patch Panel Antenna Operates Fro. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PE51024

Description：Patch Panel Antenna Operates Fro
Series：-
Mfr：Pasternack
Package：Retail Package
RF Family/Standard：-
Frequency Group：Wide Band
Frequency (Center/Band)：915MHz
Frequency Range：902MHz ~ 928MHz
Antenna Type：Panel
Number of Bands：1
VSWR：1.2
Return Loss：-
Gain：8.5dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：1.740" (44.20mm)
Applications：-
Power - Max：-

Antennas RF datasheet and documents for PE51024

PE51024

Antennas RF Overview

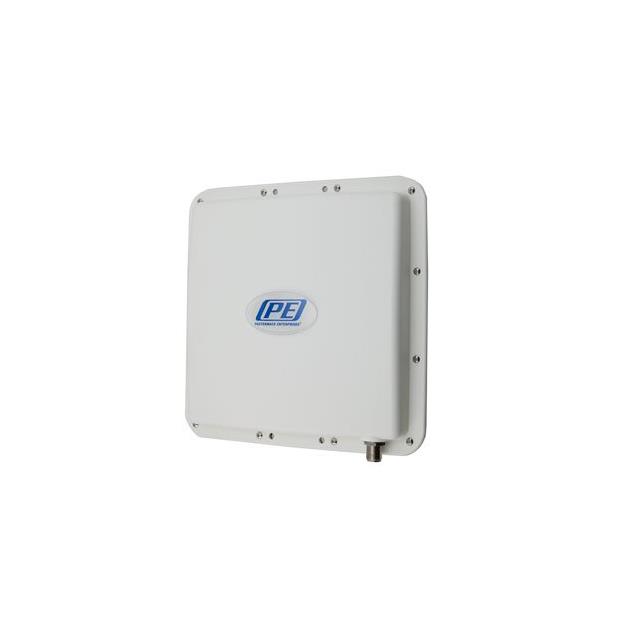

The Pasternack PE51024 is a patch panel antenna designed for the ISM and RFID bands. It operates within a frequency range of 902 MHz to 928 MHz, providing a nominal gain of 8.5 dBi. The component features an N female input connector and utilizes right-hand circular polarization (RHCP). This outdoor-rated antenna is engineered for reliable performance in radio frequency applications requiring directional signal transmission and reception.

Antennas RF Feature Summary

Supports right-hand circular polarization for enhanced signal integrity
Engineered for outdoor environmental durability
Provides directional radiation patterns suitable for panel mounting

Antennas RF Applications

RFID infrastructure systems
ISM band communication networks
Radio frequency identification tracking solutions

Antennas RF Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and connector specifications. Ensure compatibility with existing N-type interfaces. Check regional availability as distribution status may vary. Confirm environmental ratings match installation requirements before procurement.

Antennas RF Selection Notes

Select this model when right-hand circular polarization is required for the 902-928 MHz band. Consider the 8.5 dBi gain level against system link budget requirements. Evaluate the N female connector interface against available transceiver ports. Assess physical mounting constraints for panel installation scenarios.

Antennas RF Part Context

This component belongs to Pasternack's portfolio of RF antennas and cable assemblies. It serves as a specialized solution for directional communication needs within industrial, scientific, and medical frequency allocations. The product complements broader connectivity solutions by providing dedicated radiating elements for specific band operations.
