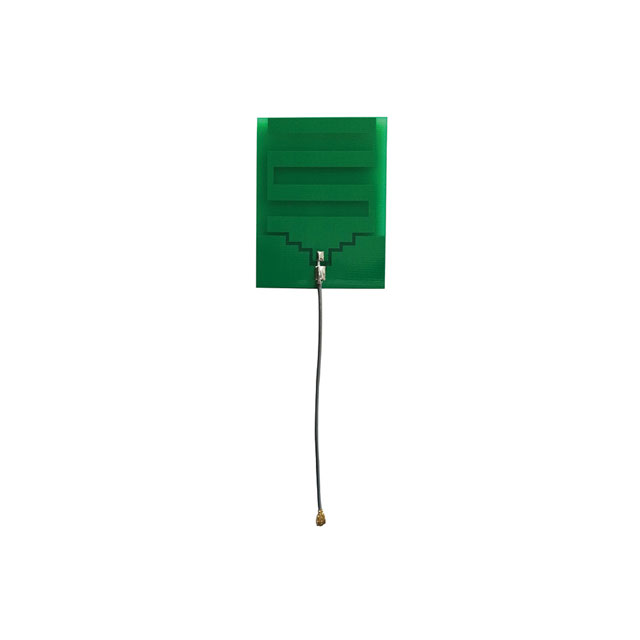

PE51216

$21.91

Description：2DBI PCB ANT 860-960MHZ UMCX
Series：-
Mfr：Pasternack
Package：Bag

SKU:546043f829e0 Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PE51216 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 2DBI PCB ANT 860-960MHZ UMCX. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PE51216

Description：2DBI PCB ANT 860-960MHZ UMCX
Series：-
Mfr：Pasternack
Package：Bag
RF Family/Standard：General ISM
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：910MHz
Frequency Range：860MHz ~ 960MHz
Antenna Type：PCB Trace
Number of Bands：1
VSWR：3
Return Loss：-
Gain：2dBi
Features：Cable - 76.2mm
Termination：U.FL (UMCX), I-PEX
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.060" (1.52mm)
Applications：LPWAN, ISM
Power - Max：-

Antennas RF datasheet and documents for PE51216

PE51216

Antennas RF Overview

The Pasternack PE51216 is a 2 dBi embedded PCB antenna designed for the 860-960 MHz frequency range. It features a UMCX connector interface and is constructed for multiband operation within this specific band. The component is classified as an omnidirectional single-band antenna, suitable for integration into compact electronic devices requiring reliable RF transmission at these frequencies.

Antennas RF Feature Summary

Omnidirectional radiation pattern for consistent signal coverage
Embedded PCB design for compact device integration
UMCX connector interface for secure attachment

Antennas RF Applications

Wireless sensor networks
IoT device connectivity modules
Industrial monitoring equipment

Antennas RF Procurement Notes

Verify the exact model number against official Pasternack documentation to ensure compatibility with your system requirements. Confirm that the UMCX connector type matches your existing hardware interfaces. Check for any regional distribution restrictions or availability updates directly from authorized suppliers before finalizing procurement plans.

Antennas RF Selection Notes

Select the PE51216 when operating specifically within the 860-960 MHz band. Ensure the UMCX connector is supported by your host device. Consider the 2 dBi gain level relative to your link budget requirements. Verify physical dimensions for PCB integration constraints.

Antennas RF Part Context

This antenna belongs to Pasternack's embedded PCB antenna series, which focuses on low-profile solutions for modern electronics. It complements other antennas in their portfolio that cover different frequency ranges and connector types, providing engineers with modular options for diverse wireless communication needs.
