PE51226

$19.08

Description：2.2-5 DBI OMNI LOW PROFILE N(F)
Series：-
Mfr：Pasternack
Package：Bag

SKU:3c7578b2064d Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

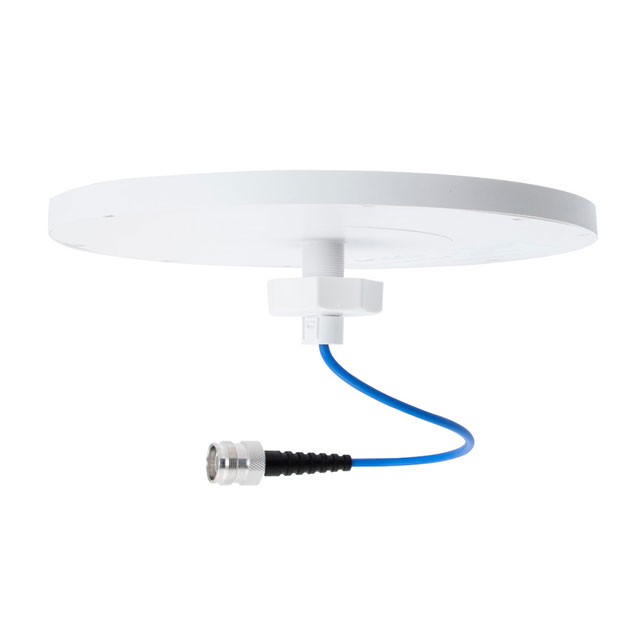

PE51226 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 2.2-5 DBI OMNI LOW PROFILE N(F). Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PE51226

Description：2.2-5 DBI OMNI LOW PROFILE N(F)
Series：-
Mfr：Pasternack
Package：Bag
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：829MHz, 1.45GHz, 2.195GHz, 3.75GHz
Frequency Range：704MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.2GHz, 2.496GHz ~ 2.69GHz
Antenna Type：Flat Panel
Number of Bands：4
VSWR：1.8
Return Loss：-
Gain：2.2dBi, 3.5dBi, 4.5dBi, 5dBi
Features：Cable - 300mm
Termination：4.3/10 - Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Ceiling Mount
Height (Max)：0.710" (18.03mm)
Applications：5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M
Power - Max：50 W

Antennas RF datasheet and documents for PE51226

PE51226

Antennas RF Overview

The Pasternack PE51226 is a flat panel RF antenna designed for multi-band wireless applications. It supports frequency ranges including 704–960 MHz, 829 MHz, 1.45 GHz, 2.195 GHz, and 3.75 GHz. The component provides 2.2 to 5 dBi omnidirectional gain with a low-profile form factor. It utilizes an N-type female connector interface. The antenna is engineered for operation across 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, and M2M networks.

Antennas RF Feature Summary

Flat panel construction with low-profile design
Omnidirectional radiation pattern
Multi-band support for diverse wireless protocols

Antennas RF Applications

5G network infrastructure
IoT and M2M connectivity systems
LPWAN and LoRA deployments
LTE-M and NB-IoT modules

Antennas RF Procurement Notes

Verify the specific datasheet version and connector polarity configuration prior to procurement. Confirm that the N-type female interface matches the host equipment requirements. Ensure environmental ratings align with the intended installation location. Cross-reference the frequency specifications against current regulatory standards for the target region.

Antennas RF Selection Notes

Select this model when a low-profile omnidirectional solution is required for multi-protocol environments. The integrated design supports simultaneous operation across cellular and IoT bands. Consider the physical dimensions and mounting options for space-constrained enclosures. Validate impedance matching with the connected transmission line components.

Antennas RF Part Context

This component belongs to the Pasternack flat panel antenna series. It is categorized under RF and Wireless products. The part number identifies a specific multi-band variant within the manufacturer's portfolio of embedded and external antenna solutions.
