PE51OM1033

$53.92

Description：6 DBI OMNI 698-960MHZ N(F)
Series：-
Mfr：Pasternack
Package：Bag

SKU:28c71b9db78b Category: RF Antennas Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PE51OM1033 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pasternack. Its product description is 6 DBI OMNI 698-960MHZ N(F). Review the specifications below when checking this part for your BOM.

Antennas RF specifications for PE51OM1033

Description：6 DBI OMNI 698-960MHZ N(F)
Series：-
Mfr：Pasternack
Package：Bag
RF Family/Standard：Cellular, Navigation
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：829MHz
Frequency Range：698MHz ~ 960MHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2
Return Loss：-
Gain：6dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：19.600" (497.84mm)
Applications：5G, LTE
Power - Max：50 W

Antennas RF datasheet and documents for PE51OM1033

PE51OM1033

Antennas RF Overview

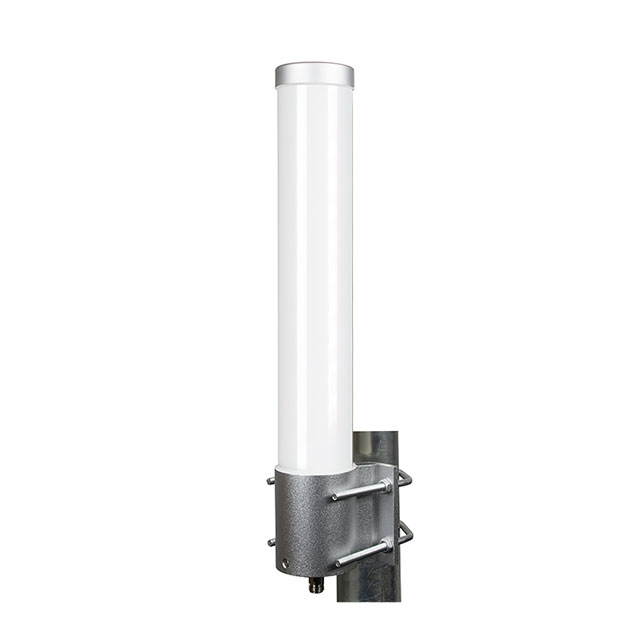

The PE51OM1033 is a 6 dBi omnidirectional antenna designed for operation within the 698-960 MHz frequency range. It features an N-type female connector and utilizes a lightweight polycarbonate radome for environmental protection. The unit includes heavy-duty steel mast mounting brackets to facilitate installation. Maximum Voltage Standing Wave Ratio (VSWR) is specified at 2:1, ensuring efficient signal transmission across the designated band.

Antennas RF Feature Summary

All-weather operational capability with integrated polycarbonate radome
Includes heavy-duty steel mast mounting brackets
Integral N-Female connector design

Antennas RF Applications

5G network infrastructure deployment
LTE cellular system integration
Whip antenna applications requiring broad coverage

Antennas RF Procurement Notes

Verify the specific datasheet version provided by Pasternack Enterprises, Inc., as product specifications may be subject to change. Confirm that the N-type female connector interface aligns with existing cabling requirements. Ensure the 698-960 MHz frequency range matches the target application spectrum before finalizing procurement decisions.

Antennas RF Selection Notes

Select this component when a 6 dBi gain omnidirectional pattern is required for frequencies between 698 and 960 MHz. The integral N-Female connector simplifies assembly by eliminating the need for separate adapters. Consider the included steel mast brackets for straightforward structural mounting in outdoor or industrial environments.

Antennas RF Part Context

This model belongs to the RF Antennas category manufactured by Pasternack. It serves as a specialized solution for wireless communication systems operating in the lower microwave bands. The design prioritizes durability through its polycarbonate radome and robust mounting hardware, distinguishing it from standard indoor antennas.
