PE51PD1012

Antennas RF Overview

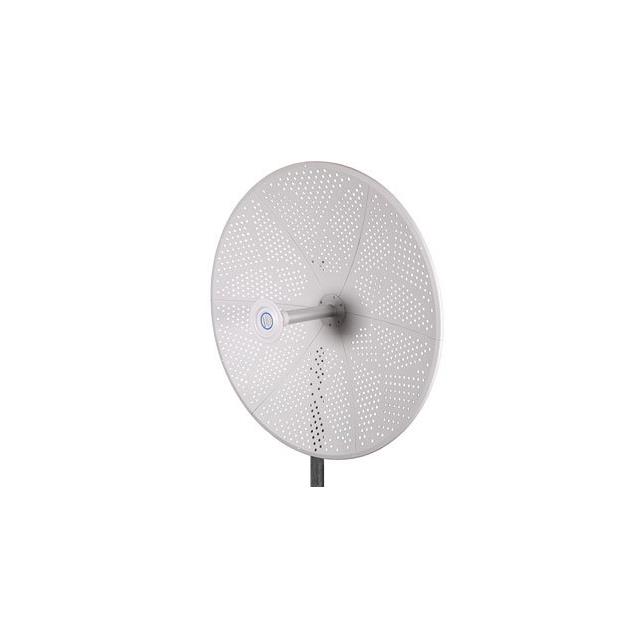

The PE51PD1012 is a single-band parabolic antenna manufactured by Pasternack, designed for operation within the 4900 MHz to 7125 MHz frequency range. It features a 34 dBi gain and supports 2x2 MIMO configurations. The unit utilizes an RPSMA connector interface and incorporates a 3-foot mesh collapsible design for portability. This component serves as a high-performance directional antenna solution for specific microwave band applications.

Antennas RF Feature Summary

• Collapsible mesh construction enables compact storage and transport while maintaining structural integrity during deployment.
• High-gain parabolic reflector design provides focused signal transmission and reception capabilities.
• Dual-channel support facilitates 2x2 MIMO operations for enhanced data throughput.

Antennas RF Applications

• Microwave point-to-point communication links
• Wireless backhaul network installations
• Temporary or rapid-deployment wireless infrastructure

Antennas RF Procurement Notes

Verify that the required frequency range aligns with the specified 4900 MHz to 7125 MHz operational bandwidth. Confirm compatibility of the RPSMA connector with existing system interfaces. Ensure the physical dimensions of the 3-foot collapsed antenna fit within the designated installation space constraints prior to finalizing procurement orders.

Antennas RF Selection Notes

Select this model when high directivity and substantial gain are required for long-range microwave connections. The collapsible form factor makes it suitable for scenarios requiring frequent setup and teardown. Consider the 2x2 MIMO capability if increased channel capacity is necessary compared to single-antenna alternatives.

Antennas RF Part Context

This component belongs to Pasternack's portfolio of specialized RF antennas. It addresses the need for portable, high-performance directional antennas in the C-band and upper microwave spectrum. The design prioritizes ease of handling without compromising the electrical performance metrics essential for reliable wireless data transmission over distance.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users requiring alternative solutions should consult manufacturer catalogs for comparable parabolic antennas with matching frequency ranges and connector types.
