PE7001-12

Overview

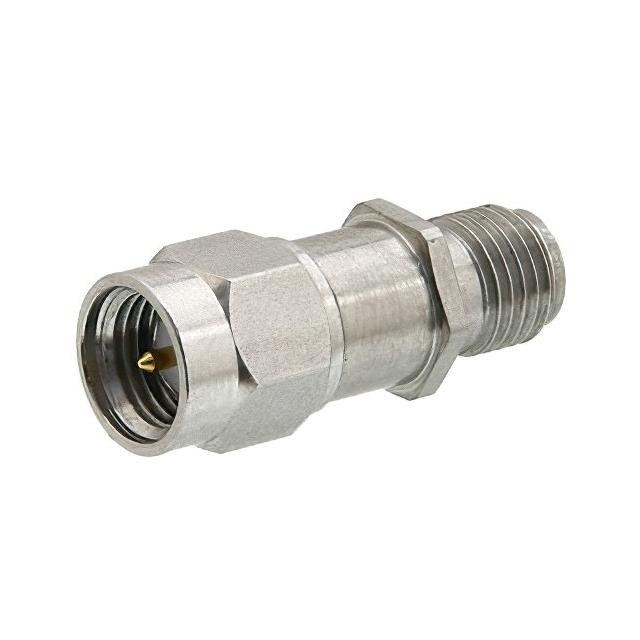

The Pasternack PE7001-12 is a fixed RF attenuator providing 12 dB attenuation. It operates within a frequency range of 0 Hz to 3 GHz and handles up to 2 Watts of power at the stated attenuation value. The component features SMA male to SMA female connectors and utilizes a passivated stainless steel body for durability.

Feature Summary

• Fixed 12 dB attenuation value
• Passivated stainless steel construction
• SMA male to SMA female interface

Applications

• RF signal level adjustment in microwave systems
• Test and measurement equipment calibration
• Signal path power reduction in communication circuits

Procurement Notes

Verify the specific datasheet version for the PE7001-12 to confirm current RoHS compliance status and exact connector plating specifications. Ensure the operating environment remains within the 2 Watt power rating and 3 GHz frequency limit to maintain performance integrity and prevent component damage.

Selection Notes

Select this model when a precise 12 dB reduction is required between SMA interfaces. Confirm that the system power levels do not exceed 2 Watts and that the frequency requirements stay below 3 GHz. The stainless steel body offers robustness suitable for general RF applications requiring fixed attenuation.

Part Context

This part belongs to the PE7001 series of fixed attenuators from Pasternack, which are characterized by their stainless steel construction and SMA connectivity. The series provides various attenuation values, with the PE7001-12 specifically designated for 12 dB reduction needs across the DC to 3 GHz spectrum.

Replacement Considerations

Direct substitutes include other PE7001 series models with different attenuation values if the dB requirement changes. Cross-brand replacements must match the SMA male-to-female configuration, 12 dB attenuation, 2 Watt power handling, and 3 GHz frequency range.
