PE7001-7

$68.06

Description：7 DB FIXED ATTENUATOR, SMA MALE
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:6fdfae6d8f2d Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：7 DB FIXED ATTENUATOR, SMA MALE
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：7dB
Frequency Range：0 Hz ~ 3 GHz
Power (Watts)：2W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：SMA In-Line Module

Download product information

PE7001-7

Overview

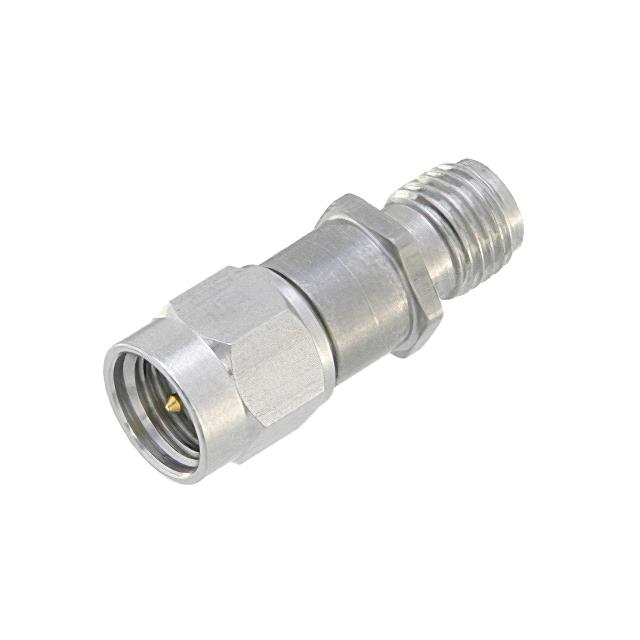

The Pasternack PE7001-7 is a fixed RF attenuator designed for microwave applications. It provides a precise attenuation value of 7 dB with SMA male to SMA female connectors. The device features a passivated stainless steel body and is rated for up to 2 Watts power handling at the stated attenuation value. It operates effectively up to a frequency of 3 GHz, ensuring reliable signal management in high-frequency circuits.

Feature Summary

Fixed attenuation design providing consistent signal reduction
Passivated stainless steel construction for durability
SMA connector interface for standard integration

Applications

Microwave circuit testing
Signal level adjustment in RF systems
Instrumentation equipment

Procurement Notes

Verify component authenticity through authorized Pasternack channels or certified distributors. Confirm datasheet specifications match application requirements, particularly regarding power handling and frequency range. Ensure proper storage conditions to maintain connector integrity and prevent corrosion of the passivated stainless steel housing.

Selection Notes

Select this model when a fixed 7 dB reduction is required within the 3 GHz bandwidth. Consider the SMA interface compatibility with existing system connectors. Evaluate the 2 Watt power rating against peak signal levels to ensure safe operation without thermal degradation or performance drift during continuous use.

Part Context

This component belongs to the PE7001 series of fixed attenuators from Pasternack. The series offers various attenuation values using similar SMA connector configurations and stainless steel bodies. These units are standardized for general-purpose RF applications requiring predictable signal loss across microwave frequencies.

Replacement Considerations

Compatible substitutes include other PE7001 series variants with different attenuation values, such as PE7001-6 or PE7001-9, provided the specific dB requirement differs. Ensure replacement models maintain the same SMA male-to-female configuration and 3 GHz frequency limit.
