PE7005-10

Attenuators Overview

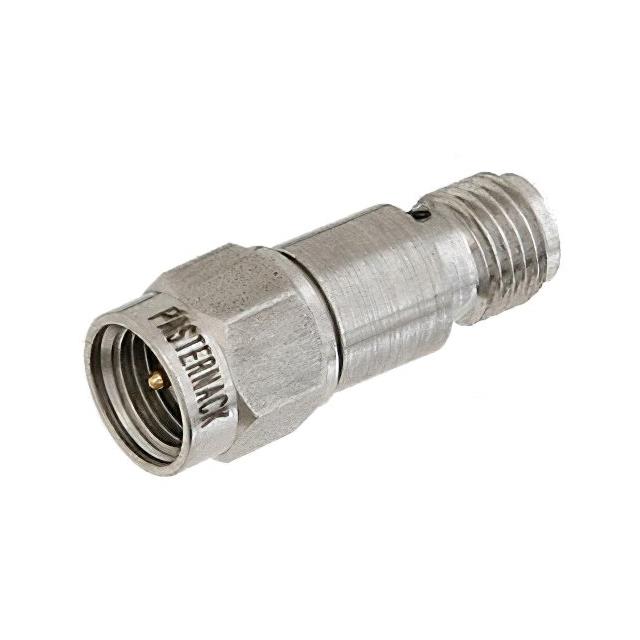

The PE7005-10 is a fixed 10 dB attenuator manufactured by Pasternack. It features an in-line, resistive PI attenuator pad design with SMA male to SMA female connectors. The device operates within a frequency range of 0 Hz to 18 GHz and has a maximum power rating of 2 Watts. It utilizes a passivated stainless steel body, ensuring durability and consistent performance across its specified bandwidth.

Attenuators Feature Summary

• In-line resistive PI attenuator pad design for stable signal attenuation
• Passivated stainless steel body construction for environmental resistance
• SMA connector interface providing reliable RF connection integrity

Attenuators Applications

• RF signal level reduction in test and measurement setups
• Impedance matching between 50 Ohm components in high-frequency circuits
• Protection of sensitive receiver inputs from high-power signals

Attenuators Procurement Notes

Verify the specific datasheet version for the PE7005-10 to confirm current RoHS compliance status and detailed mechanical dimensions. Ensure that the SMA connector gender and mating requirements align with the existing system infrastructure before finalizing procurement orders.

Attenuators Selection Notes

Select this component when a precise 10 dB attenuation value is required up to 18 GHz. Consider the 2 Watt power handling capability against the expected signal levels. The passivated stainless steel housing offers advantages in environments requiring corrosion resistance compared to standard plated bodies.

Attenuators Part Context

This part belongs to Pasternack's series of coaxial attenuators designed for general-purpose RF applications. It serves as a passive component to manage signal strength without introducing significant distortion. The product line emphasizes robust construction suitable for both laboratory and field deployment scenarios.

Attenuators Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 10 dB attenuation value, SMA interface, and 18 GHz frequency limit.
