PE7017-2

Attenuators Overview

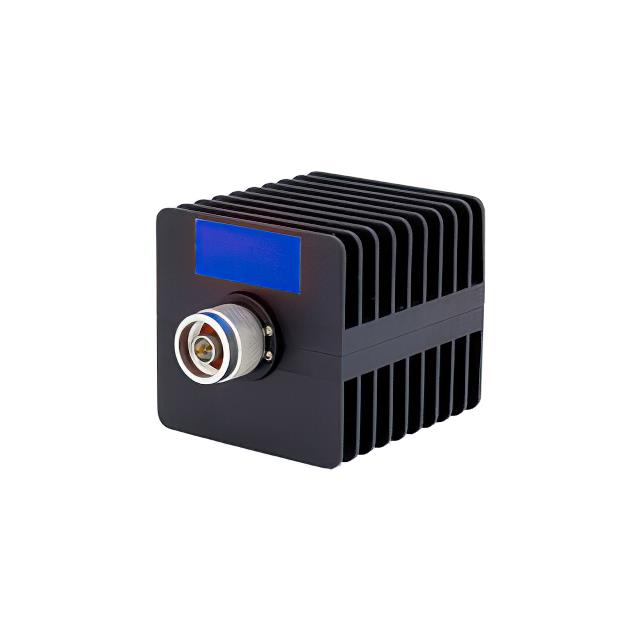

The Pasternack PE7017-2 is a fixed RF attenuator designed for high-power applications up to 18 GHz. It features N Male to N Female connectors and provides a precise attenuation value of 2 dB. The unit is rated for 25 Watts at the stated attenuation level, ensuring reliable performance in demanding signal environments. Constructed with a black anodized aluminum heatsink body, it effectively dissipates thermal energy generated during operation. This component maintains a maximum VSWR of 1.45:1 across its frequency range, supporting stable impedance matching. Operating within a temperature range of -65°C to +125°C, it offers robust durability for various test and measurement setups.

Attenuators Feature Summary

• Fixed 2 dB attenuation value for consistent signal reduction
• High power handling capability rated at 25 Watts
• Broadband operation extending up to 18 GHz
• Durable black anodized aluminum heatsink body construction

Attenuators Applications

• RF test and measurement systems requiring precise signal attenuation
• Microwave communication equipment testing
• Signal conditioning in high-power transmission lines
• Laboratory calibration setups

Attenuators Procurement Notes

Verify the specific model number PE7017-2 against official Pasternack documentation to confirm the 2 dB attenuation value and 25 Watt power rating. Ensure connector types match N Male to N Female requirements. Check RoHS compliance status through manufacturer datasheets. Confirm operating temperature ranges align with environmental conditions. Validate frequency specifications up to 18 GHz for intended application compatibility before purchase.

Attenuators Selection Notes

Select this component when a fixed 2 dB reduction is required in high-power scenarios up to 18 GHz. Consider the N Male/N Female interface for standard coaxial connections. Evaluate the 25 Watt power rating against peak signal levels. Assess the physical dimensions and heatsink design for thermal management needs. Compare VSWR specifications to ensure minimal reflection impact on system performance.

Attenuators Part Context

This part belongs to Pasternack's series of fixed directional attenuators. It utilizes standard N-type connectors suitable for general microwave frequencies. The black anodized finish provides corrosion resistance and thermal efficiency. Designed for benchtop or rack-mounted integration in test environments. Offers a compact form factor relative to its power handling capacity.

Attenuators Replacement Considerations

Direct substitutes may include other 2 dB fixed attenuators from Pasternack with identical N Male/N Female interfaces and similar power ratings. Verify frequency range coverage up to 18 GHz and VSWR limits. Ensure mechanical dimensions fit existing mounting constraints. Cross-reference datasheets for thermal dissipation capabilities.
