PE7047-12

Attenuators Overview

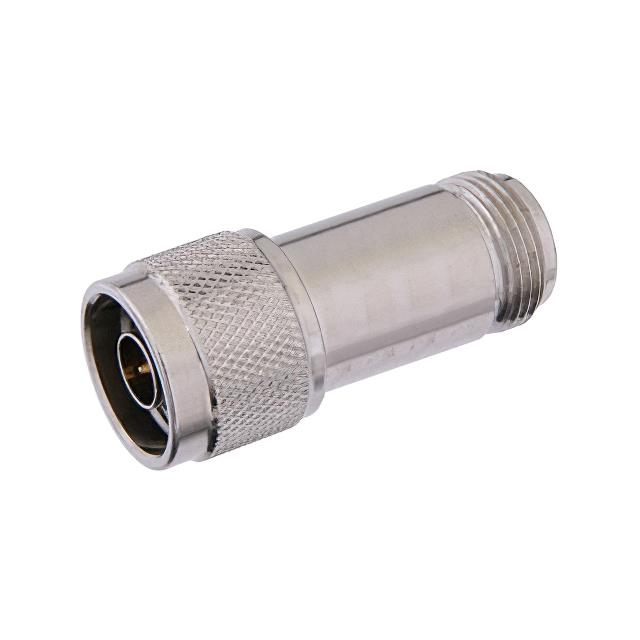

The Pasternack PE7047-12 is a fixed RF attenuator designed for in-line applications. It provides a nominal attenuation of 12 dB with a frequency range extending from 0 Hz to 12.4 GHz. The device utilizes N-type connectors, featuring a male interface on one side and a female interface on the other. It is rated to handle up to 2 Watts of power at the specified attenuation value. The unit is housed in a passivated stainless steel body.

Attenuators Feature Summary

• Fixed attenuation level of 12 dB
• Operates within a frequency range up to 12.4 GHz
• N-type connector configuration with male and female interfaces
• Passivated stainless steel housing

Attenuators Applications

• RF signal path attenuation
• Test and measurement setups
• Microwave system integration

Attenuators Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with your system requirements. Confirm that the N-type connector gender and passivated stainless steel construction meet your environmental and electrical specifications before procurement.

Attenuators Selection Notes

Select this component when a precise 12 dB reduction is required in an RF chain operating up to 12.4 GHz. Ensure the 2 Watt power rating aligns with your system's maximum signal levels. Verify that the N-type connector type matches your existing cabling infrastructure.

Attenuators Part Context

This model belongs to the PE7047 series of fixed attenuators from Pasternack. The series offers various attenuation values while maintaining consistent connector types and frequency performance characteristics across different models.

Attenuators Replacement Considerations

Compatible substitutes include PE7047-2, PE7047-6, PE7047-20, PE7047-30, and PE7047-40, which share similar connector types and frequency ranges but offer different attenuation values.
