PE7088-12

Attenuators Overview

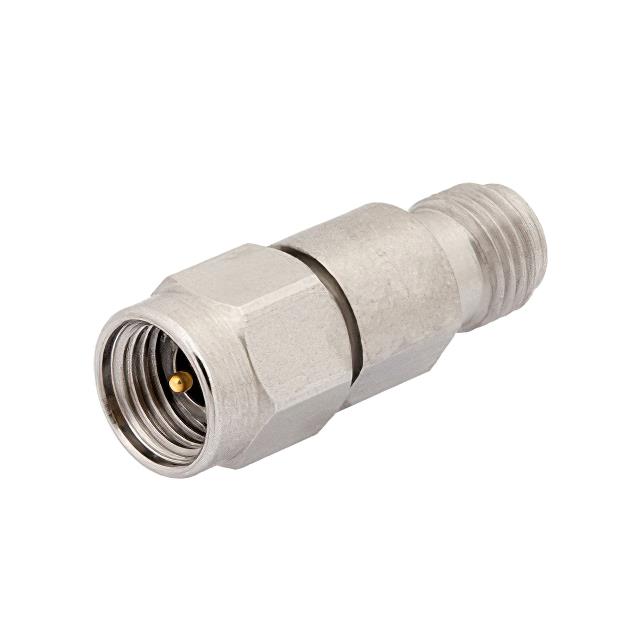

The Pasternack PE7088-12 is a fixed attenuator featuring 2.92mm male-to-female connectors with a stainless steel body. It provides a fixed attenuation value of 12 dB and operates up to a maximum frequency of 40 GHz. The component is rated for a power handling capacity of 1 Watt. This design ensures reliable performance in high-frequency RF applications requiring precise signal reduction.

Attenuators Feature Summary

• Constructed with durable stainless steel housing for mechanical robustness
• Utilizes precision 2.92mm connector interface for high-frequency integrity
• Provides fixed 12 dB attenuation for consistent signal management

Attenuators Applications

• High-frequency test and measurement setups
• RF signal path conditioning
• Component characterization environments

Attenuators Procurement Notes

Verify the specific datasheet version for the PE7088-12 to confirm exact electrical tolerances and physical dimensions prior to integration. Ensure that system requirements align with the 1 Watt power rating and 40 GHz frequency limit. Cross-reference connector polarity and mating compatibility with existing infrastructure to prevent installation errors.

Attenuators Selection Notes

Select this component when a fixed 12 dB loss is required within a 40 GHz bandwidth. The 2.92mm interface offers superior performance compared to standard SMA or N-type connectors at these frequencies. Consider the stainless steel construction for environments demanding enhanced durability and shielding effectiveness.

Attenuators Part Context

This model belongs to the Pasternack PE7088 attenuator series, which specializes in high-performance fixed attenuators. The series utilizes 2.92mm connectors to maintain signal integrity at millimeter-wave frequencies. These components are engineered for applications where stable attenuation values are critical across wide bandwidths.

Attenuators Replacement Considerations

Public confirmed substitute part numbers: None identified.
