PE7162-5

Attenuators Overview

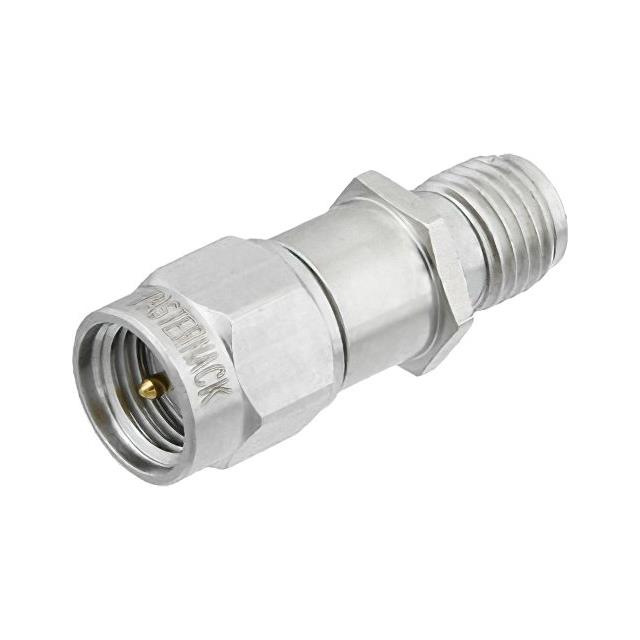

The PE7162-5 is a fixed coaxial attenuator manufactured by Pasternack. It provides an attenuation value of 5 dB with a power rating of 2 Watts. The device operates from DC to 6 GHz. It features SMA male to SMA female connectors and utilizes a passivated stainless steel body.

Attenuators Feature Summary

• Provides precise 5 dB signal attenuation for RF applications
• Operates effectively across a frequency range up to 6 GHz
• Constructed with a durable passivated stainless steel housing

Attenuators Applications

• RF signal level reduction in test and measurement setups
• Impedance matching between components in microwave circuits
• Protection of sensitive receiver inputs from high power signals

Attenuators Procurement Notes

Verify the specific model suffix against official Pasternack documentation to confirm connector gender, attenuation value, and frequency range. Ensure the required power handling capacity meets system requirements before procurement. Cross-reference datasheet specifications for environmental operating limits.

Attenuators Selection Notes

Select this component when a fixed 5 dB attenuation is required within a 6 GHz bandwidth. Confirm that the SMA interface matches the existing system architecture. Verify that the 2 Watt power rating is sufficient for the intended application environment.

Attenuators Part Context

This part belongs to the Pasternack series of fixed coaxial attenuators. These components are designed to provide stable attenuation values without active power sources. The series typically offers various attenuation steps and connector types to support diverse RF engineering needs.

Attenuators Replacement Considerations

Consult official Pasternack substitution guides for equivalent models. Verify that any alternative part matches the 5 dB value, 6 GHz limit, and SMA interface.
