PE7206-10

Attenuators Overview

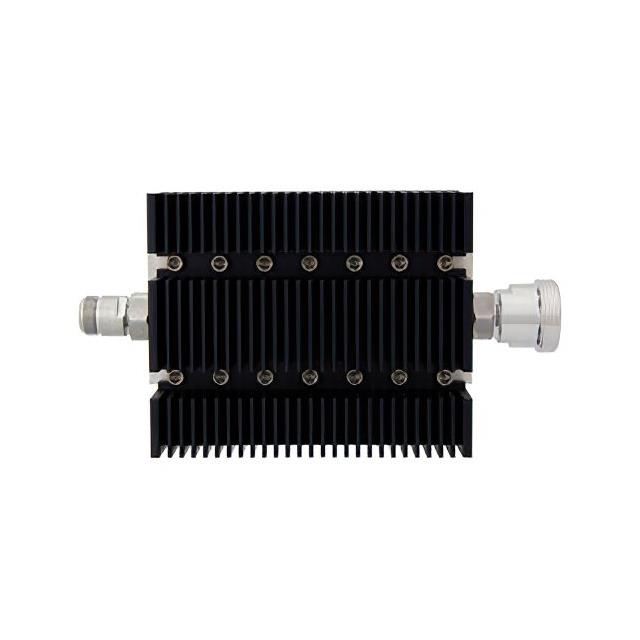

The Pasternack PE7206-10 is a fixed RF attenuator module designed for high-power applications. It provides a nominal attenuation value of 10 dB with a frequency range extending from 0 Hz to 6 GHz. The device features N female connectors on one side and 7/16 DIN female connectors on the other, facilitating interface conversion between these two standard series. Rated for up to 100 Watts at the stated attenuation value, this component operates within a 50 Ohm system impedance. It is constructed as a directional attenuator suitable for microwave signal processing tasks requiring precise power reduction.

Attenuators Feature Summary

• Provides fixed 10 dB signal attenuation across a wide frequency spectrum
• Converts between N-type and 7/16 DIN connector interfaces
• Supports high-power operation up to 100 Watts
• Designed for directional signal flow in microwave systems

Attenuators Applications

• Microwave signal power reduction in test and measurement setups
• High-power RF circuit protection and level adjustment
• Signal conditioning in communication infrastructure equipment
• Laboratory experiments requiring precise attenuation values

Attenuators Procurement Notes

Verify that the specific order matches the PE7206-10 designation to ensure correct attenuation and connector types. Confirm that the application environment remains within the 100 Watt power rating and 6 GHz frequency limit. Check for physical compatibility between N female and 7/16 DIN female ports before installation. Ensure proper handling procedures are followed to maintain component integrity during assembly.

Attenuators Selection Notes

Choose this model when both 10 dB attenuation and high-power handling are required simultaneously. Select this part if the system necessitates a transition between N-type and 7/16 DIN interfaces. Consider this component for applications where directional performance is critical. Evaluate the 6 GHz upper frequency limit against system requirements to ensure adequate bandwidth coverage without signal degradation.

Attenuators Part Context

This component belongs to the Pasternack line of RF and microwave attenuators. It serves as a specialized passive device for managing signal levels in high-frequency environments. The product integrates robust construction to handle significant power loads while maintaining consistent attenuation characteristics. It complements other RF components by providing reliable signal control in complex microwave networks.

Attenuators Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
