PE7213-10

Attenuators Overview

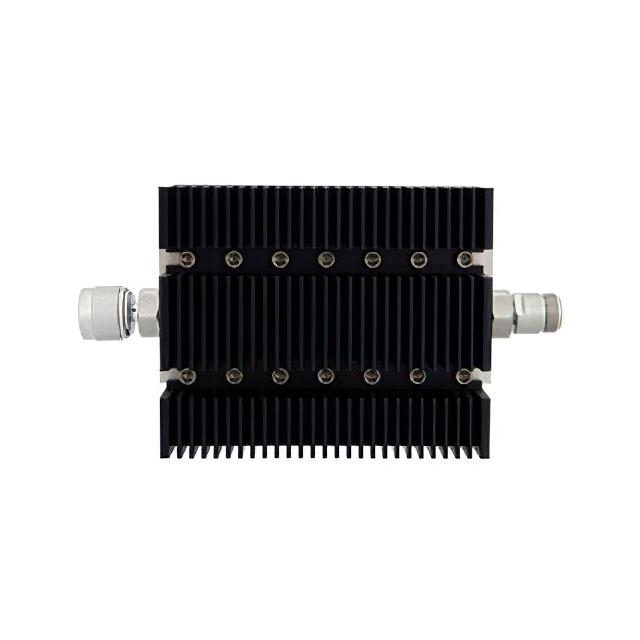

The Pasternack PE7213-10 is a fixed RF attenuator module designed for high-power applications. It provides an attenuation value of 10 dB with a frequency range extending from 0 Hz to 6 GHz. The component features N-Type connectors and operates at a system impedance of 50 Ohms. It is rated for a maximum power handling capacity of 100 Watts. The housing is constructed from black anodized aluminum, serving as a heatsink to manage thermal loads during operation.

Attenuators Feature Summary

• Directional design utilizing N-Type male to female connector interface
• High power handling capability rated up to 100 Watts
• Broadband frequency performance covering DC to 6 GHz
• Thermal management via black anodized aluminum heatsink construction

Attenuators Applications

• RF signal level reduction in high-power transmission lines
• Test and measurement setups requiring precise attenuation within 6 GHz bandwidth
• Power amplifier output stage protection
• Signal conditioning in microwave communication systems

Attenuators Procurement Notes

Verify the specific connector gender configuration (N-Type Male to Female) matches the circuit requirements. Confirm that the 100W power rating aligns with the operational thermal environment. Ensure the 6 GHz frequency limit satisfies the application's spectral needs. Check for RoHS compliance status if required by regulatory standards.

Attenuators Selection Notes

Select this model when a fixed 10 dB attenuation is required at high power levels. The N-Type interface suits larger coaxial systems compared to SMA or SMB variants. Consider the physical size and heatsink requirements for integration into enclosed spaces. Verify impedance matching to ensure minimal reflection in 50 Ohm systems.

Attenuators Part Context

This component belongs to the Pasternack PE7213 series of directional fixed attenuators. The series includes variants with different attenuation values such as 20 dB and 30 dB, all sharing similar N-Type interfaces and power ratings. These modules are engineered for robustness in demanding RF environments, offering consistent performance across the specified frequency range.

Attenuators Replacement Considerations

Compatible substitutes include other Pasternack models within the PE7213 series, such as PE7213-20 or PE7213-30, provided the attenuation value difference is acceptable. External replacements must match the N-Type connector type, 50 Ohm impedance, and 100W power rating to ensure functional equivalence.
