PE7310-3

Attenuators Overview

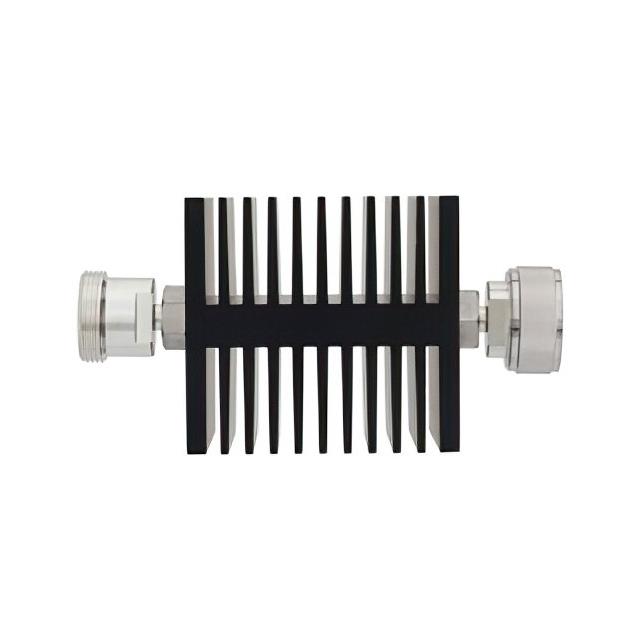

The Pasternack PE7310-3 is a fixed attenuator designed for RF applications. It provides an attenuation value of 3 dB with a frequency range spanning from 0 Hz to 7.5 GHz. The component features a 50 Ohm impedance and supports a maximum power handling capacity of 50 Watts. It utilizes 7/16 DIN connectors, specifically configured as a female-to-male inline module. The housing is constructed from hexagonal single-row module materials.

Attenuators Feature Summary

• Provides precise 3 dB signal attenuation for RF systems
• Operates effectively across a wide frequency spectrum up to 7.5 GHz
• Supports high power handling capabilities of 50 Watts
• Features robust 7/16 DIN connector interface for secure connections

Attenuators Applications

• RF signal level reduction in communication systems
• Test and measurement equipment calibration
• High-power RF circuit protection
• Signal conditioning in wireless infrastructure

Attenuators Procurement Notes

Verify the specific connector gender configuration matches system requirements, as this model is specified as female-to-male. Confirm that the operating frequency does not exceed the 7.5 GHz limit and that power levels remain within the 50 Watt rating. Ensure compatibility with 7/16 DIN mating interfaces. Check for any environmental specifications if used in extreme conditions. Validate part number accuracy against official manufacturer documentation before purchase.

Attenuators Selection Notes

Select this component when a fixed 3 dB attenuation is required in high-power RF environments. It is suitable for applications needing reliable performance up to 7.5 GHz. Consider the 7/16 DIN interface for robust mechanical connections. Evaluate the 50 Watt power rating against peak signal levels. This model is ideal for inline module integration where space efficiency and thermal dissipation are priorities.

Attenuators Part Context

The PE7310-3 belongs to Pasternack's line of fixed attenuators utilizing 7/16 DIN connectors. These components are engineered for stability and precision in RF signal management. The series includes various attenuation values and configurations to meet diverse system needs. This specific model offers a compact hexagonal design suitable for dense packaging requirements.

Attenuators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Verify exact electrical parameters and connector types when considering alternatives. Ensure replacement components match the 3 dB attenuation, 50 Ohm impedance, and 7.5 GHz frequency range. Check power handling capabilities to maintain system integrity.
