PE7321-6

Overview

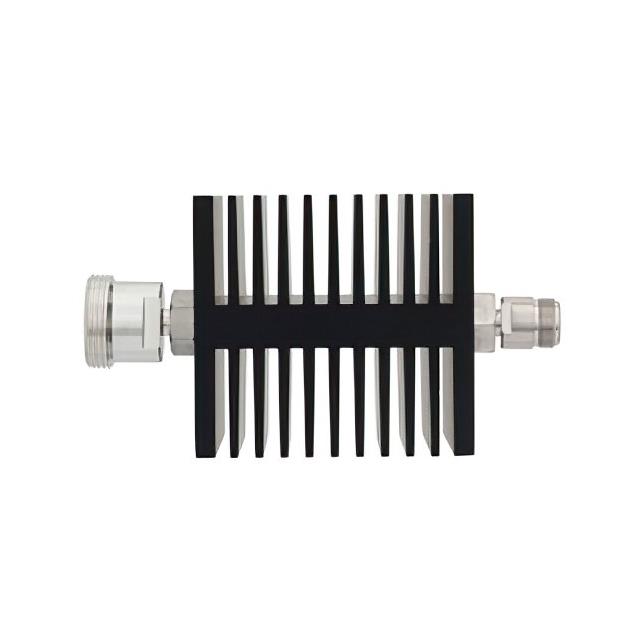

The Pasternack PE7321-6 is a fixed RF attenuator module designed for high-frequency applications. It provides a nominal attenuation of 6 dB with a frequency range extending from DC to 18 GHz. The device features a 7/16 DIN female input connector and an N female output connector, facilitating integration into diverse RF systems. It is rated for a maximum power handling capacity of 50 Watts at the specified attenuation value. The unit operates within a standard impedance environment of 50 Ohms, ensuring compatibility with common microwave test and measurement setups.

Feature Summary

• Directional design supports signal monitoring and testing requirements
• Robust construction suitable for demanding RF environments
• Fixed attenuation value ensures consistent signal reduction

Applications

• Microwave test and measurement instrumentation
• Signal level adjustment in communication systems
• RF component characterization and validation

Procurement Notes

Verify the specific connector types and power ratings against system requirements before procurement. Confirm that the 7/16 DIN to N female configuration aligns with existing infrastructure. Ensure the 50 Watt power rating meets operational needs. Check for RoHS compliance if required by project specifications. Review the official datasheet for detailed mechanical dimensions and environmental operating conditions.

Selection Notes

Select this model when a precise 6 dB attenuation is required up to 18 GHz. Consider the mixed connector interface (7/16 DIN to N) for adapter-free connections. Evaluate the 50 Watt power handling capability against peak signal levels. Compare with other fixed attenuators if variable attenuation or different connector styles are needed. Ensure the 50 Ohm impedance matches the system architecture.

Part Context

This component belongs to Pasternack's line of fixed RF attenuators. These modules are engineered for stability and precision in microwave frequencies. The product series typically includes various attenuation values and connector combinations to support broad RF engineering needs. The PE7321-6 specifically addresses applications requiring moderate signal reduction with high-frequency performance.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
