PE7323-6

Attenuators Overview

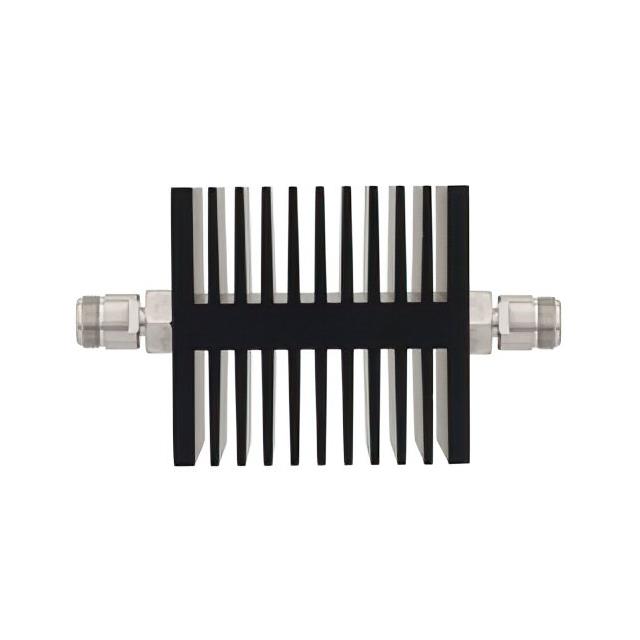

The Pasternack PE7323-6 is a fixed RF attenuator module designed for high-frequency applications. It provides a precise attenuation value of 6 dB with a nominal impedance of 50 Ohms. The device operates across a frequency range from 0 Hz to 18 GHz, ensuring performance in both DC and microwave bands. It features N-Type female connectors on both input and output sides, facilitating direct integration into standard coaxial systems. The unit is rated for a maximum power handling capacity of 50 Watts at the specified attenuation level. Constructed as an inline module, it supports directional signal management within RF test setups.

Attenuators Feature Summary

• Provides fixed 6 dB attenuation for signal level reduction
• Operates up to 18 GHz frequency range
• Features N-Type female connectors for standard interfacing
• Rated for 50 Watts power handling capacity

Attenuators Applications

• RF signal testing and measurement equipment
• Microwave communication system calibration
• Signal path power reduction in laboratory setups

Attenuators Procurement Notes

Verify the specific attenuation tolerance and VSWR specifications against the official datasheet before integration. Confirm that the 50 Watt power rating aligns with your system's peak power requirements. Ensure connector gender compatibility with existing N-Type interfaces. Check for RoHS compliance status if required by your manufacturing standards. Validate the frequency response curve for your specific application bandwidth.

Attenuators Selection Notes

Select this component when a fixed 6 dB reduction is required within an 18 GHz operational window. The 50 Ohm impedance matches standard RF infrastructure. Consider the 50 Watt power rating for high-power transmission lines. The N-Type interface ensures broad compatibility with common coaxial hardware. Evaluate thermal management needs given the power dissipation characteristics.

Attenuators Part Context

This part belongs to Pasternack's series of fixed attenuators, specifically the PE7323 line which offers various attenuation values such as 3 dB and 40 dB. These modules are engineered for precision in microwave environments. The PE7323-6 serves as a mid-range attenuation option within this family, balancing signal reduction with minimal insertion loss impact outside its primary function.

Attenuators Replacement Considerations

Compatible substitutes include other 6 dB N-Type fixed attenuators from Pasternack or third-party manufacturers meeting the 50 Ohm, 50 Watt, and 18 GHz specifications. Verify mechanical dimensions and connector torque requirements for direct replacement.
