PE7369-3

Attenuators Overview

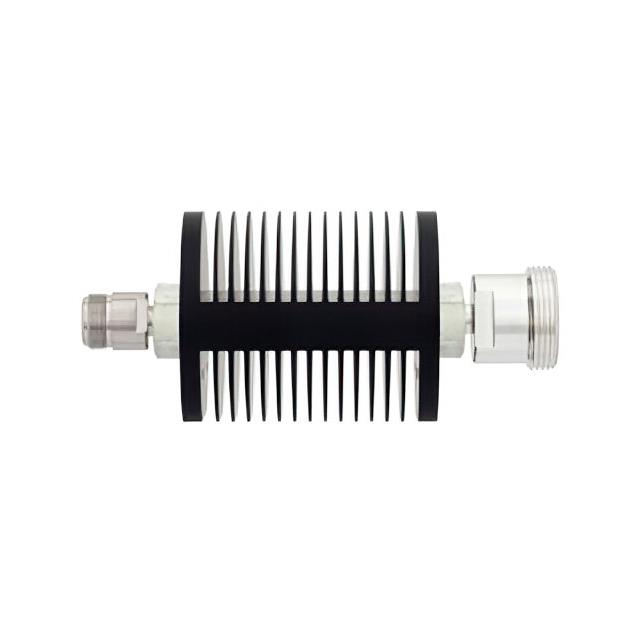

The PE7369-3 is a fixed 3 dB attenuator manufactured by Pasternack. It features N Female to 7/16 DIN Female connectors and operates within a frequency range of DC to 7.5 GHz. The device is rated for 25 Watts power handling. Constructed as an in-line, resistive PI attenuator pad design, it provides precise signal attenuation in coaxial 50 Ohm systems.

Attenuators Feature Summary

• In-line resistive PI attenuator pad design
• Fixed 3 dB attenuation value
• Coaxial 50 Ohm impedance system

Attenuators Applications

• RF signal level reduction
• Impedance matching networks
• Test and measurement setups

Attenuators Procurement Notes

Verify connector gender and interface standards (N Female to 7/16 DIN Female) against schematic requirements. Confirm power rating (25 Watts) and frequency range (DC to 7.5 GHz) match operational limits. Check RoHS compliance status if environmental regulations apply. Ensure mechanical dimensions fit the installation space.

Attenuators Selection Notes

Select this component when a fixed 3 dB loss is required between N-type and 7/16 DIN interfaces. Suitable for applications needing stable attenuation up to 7.5 GHz. Consider thermal management for continuous 25 Watt operation. Verify compatibility with existing 50 Ohm system infrastructure.

Attenuators Part Context

Part of Pasternack's fixed attenuator series. Designed for reliable performance in RF environments. Complements other Pasternack components like surge protectors and cable assemblies in complete RF solutions.

Attenuators Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires identical specifications: 3 dB loss, N Female to 7/16 DIN Female connectors, 50 Ohm impedance, and 25 Watt power rating.
