PE7385-6

Attenuators Overview

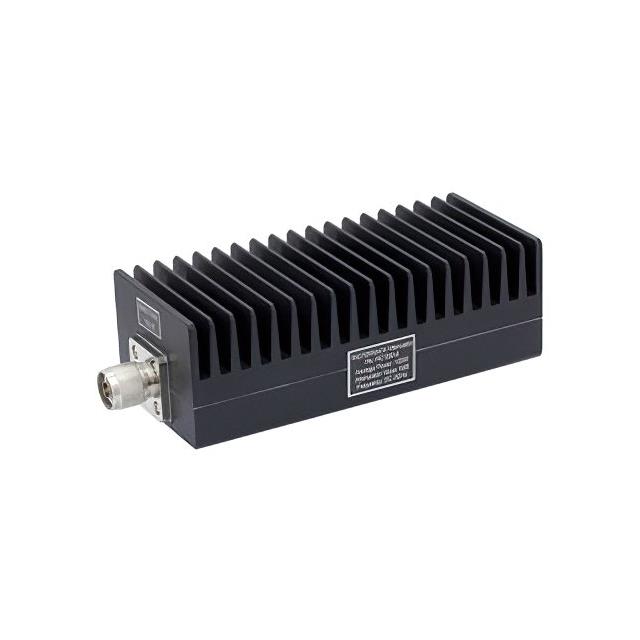

The PE7385-6 is a fixed attenuator manufactured by Pasternack, providing an attenuation value of 6 dB. It operates within a frequency range of 0 Hz to 3 GHz and features N-type connectors with male-to-female configuration. The device is rated for 100 Watts of power at the stated attenuation level and maintains a 50 Ohm impedance. Constructed with a black anodized aluminum heatsink body, it ensures thermal stability during operation.

Attenuators Feature Summary

• Fixed 6 dB attenuation performance across the operational bandwidth
• N-type connector interface for reliable signal connection
• Black anodized aluminum heatsink body for thermal management

Attenuators Applications

• RF signal level reduction in microwave systems
• Impedance matching in 50 Ohm transmission lines
• Signal conditioning in test and measurement equipment

Attenuators Procurement Notes

Verify the specific model number PE7385-6 against official Pasternack documentation to confirm the 6 dB attenuation rating and 100W power handling capacity. Ensure compatibility with N-type connectors and 0-3 GHz frequency requirements before integration into RF circuits.

Attenuators Selection Notes

Select this component when a precise 6 dB attenuation is required in N-type systems up to 3 GHz. Consider the 100W power rating and aluminum heatsink design for applications involving significant signal power levels requiring passive thermal dissipation.

Attenuators Part Context

This part belongs to Pasternack's series of fixed attenuators, which includes various attenuation values such as 40 dB, 20 dB, and 10 dB models. These components are designed for consistent performance in RF environments, utilizing standardized connector types and robust construction materials.

Attenuators Replacement Considerations

Direct substitutes include other 6 dB fixed attenuators from Pasternack with identical N-type male-to-female interfaces and similar power ratings. Verify frequency range and physical dimensions to ensure mechanical and electrical compatibility.
