PE9861B-20-CPRG

Antennas RF Overview

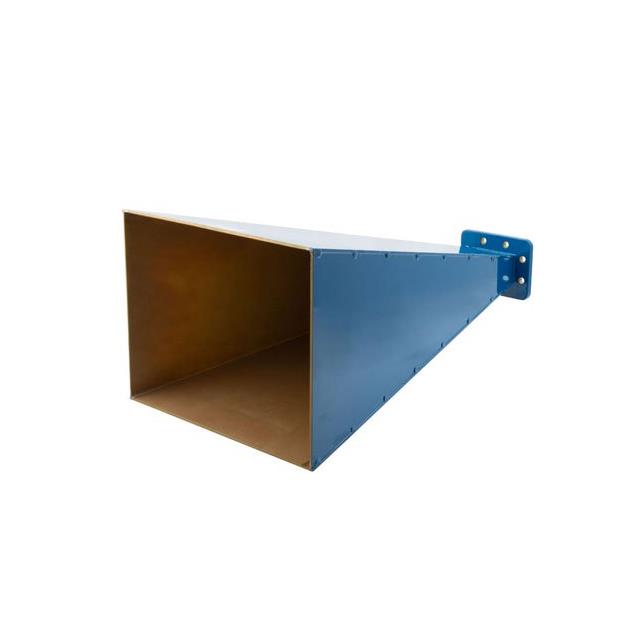

The Pasternack PE9861B-20-CPRG is a WR-187 waveguide standard gain horn antenna designed for operation within the frequency range of 3.95 GHz to 5.85 GHz. It provides a nominal gain of 20 dBi and features a CPRG flange configuration. This component serves as a signal conditioning element in RF systems requiring directional transmission or reception within the specified microwave band.

Antennas RF Feature Summary

• Utilizes WR-187 waveguide dimensions for standardized mechanical integration
• Provides nominal 20 dBi gain for effective signal directionality
• Incorporates CPRG flange design for secure mounting compatibility

Antennas RF Applications

• Microwave communication link testing
• Radar system calibration
• Antenna measurement setups

Antennas RF Procurement Notes

Verify the specific CPRG flange interface requirements against your existing waveguide infrastructure before procurement. Confirm that the operating frequency range aligns with your system's bandwidth needs. Ensure environmental conditions match the antenna's operational specifications. Cross-reference the manufacturer datasheet for detailed mechanical drawings and torque specifications to guarantee proper installation and performance integrity.

Antennas RF Selection Notes

Select this model when a fixed 20 dBi gain is required within the 3.95 GHz to 5.85 GHz spectrum. The WR-187 waveguide format dictates physical size constraints, so verify spatial availability in the installation environment. Consider the CPRG flange type if it matches your existing waveguide components. Evaluate whether the narrowband nature of horn antennas suits your application compared to broader coverage alternatives.

Antennas RF Part Context

This component belongs to Pasternack's standard gain horn antenna series, which offers precise radiation patterns for test and measurement applications. The PE9861B-20-CPRG variant specifically addresses the C-band and lower Ku-band frequencies using WR-187 waveguide technology. These antennas are engineered for high directivity and stable gain characteristics in controlled RF environments.
