PEANMOB1003-RTP

Antennas RF Overview

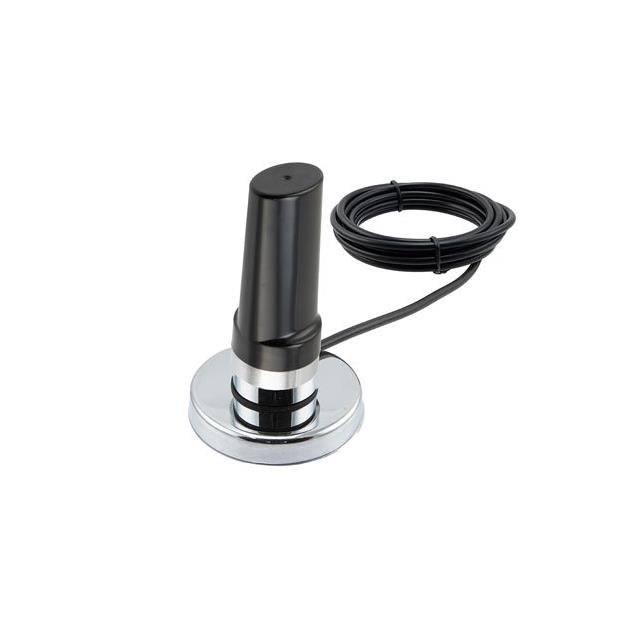

The PEANMOB1003-RTP is an omni-directional antenna manufactured by Pasternack. It operates within the frequency range of 136 MHz to 940 MHz and provides a gain of 4.5 dBi. The unit features a magnetic NMO mount for installation and utilizes a Reverse Polarity-TNC plug connector.

Antennas RF Feature Summary

• Omni-directional radiation pattern
• Magnetic NMO mounting base
• Reverse Polarity-TNC connector interface

Antennas RF Applications

• General purpose wireless communication systems
• Mobile radio installations requiring magnetic mounting
• Broadband RF signal transmission in vehicle applications

Antennas RF Procurement Notes

Verify the specific connector type, as this model uses a Reverse Polarity-TNC plug. Confirm that the receiving equipment supports reverse polarity interfaces to ensure proper mating. Check current availability status with authorized distributors, as supply levels may vary.

Antennas RF Selection Notes

Select this component when a broad frequency coverage from 136 MHz to 940 MHz is required alongside high gain. The magnetic NMO mount facilitates temporary or semi-permanent attachment to ferrous surfaces. Ensure the application environment accommodates the physical dimensions and weight of the assembly.

Antennas RF Part Context

This part belongs to the Pasternack series of omni-directional antennas designed for versatile mounting options. It shares the same core performance characteristics and mounting style as other variants in the line, differing primarily in connector type and specific frequency tuning.
