PEC17SBEN

Headers, Male Pins Overview

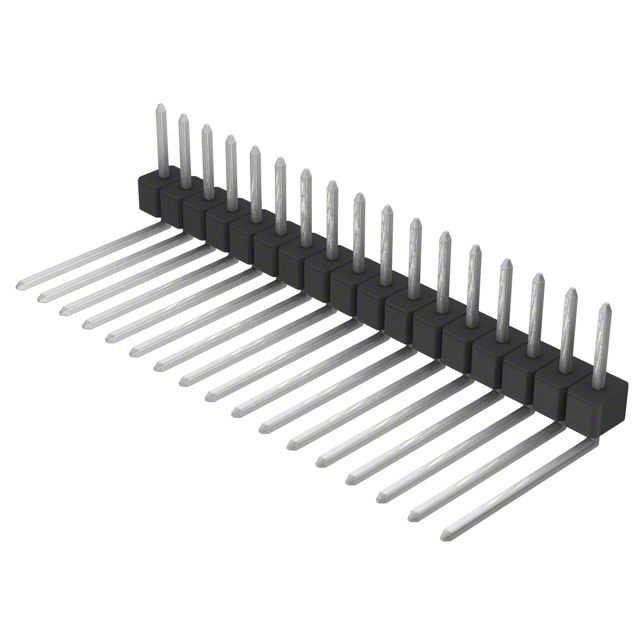

The PEC17SBEN is a single-row male header connector manufactured by Sullins Connector Solutions. It features 17 positions with a 0.100 inch (2.54mm) pitch. Designed for through-hole mounting, this right-angle variant utilizes phosphor bronze contacts with gold plating on the mating surface and tin plating on the tail. The insulator is constructed from black PBT material rated UL94 V-0. It supports a current rating of 3A and operates within a temperature range of -65°C to 125°C.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting configuration for space-efficient board integration
• Gold-plated contact surfaces ensure reliable signal transmission and corrosion resistance
• Breakaway design allows for custom length segmentation during assembly

Headers, Male Pins Applications

• General electronic circuit interconnections
• Industrial control system wiring
• Consumer electronics internal connections

Headers, Male Pins Procurement Notes

Verify component authenticity against manufacturer specifications. Confirm RoHS compliance status prior to integration. Ensure storage conditions maintain integrity of the tin-plated tails. Cross-reference datasheet revisions to confirm parameter consistency.

Headers, Male Pins Selection Notes

Select this model when right-angle orientation is required for single-row connections. Verify that the PCB layout accommodates the specific height dimensions of the right-angle header. Ensure mating connectors match the 0.100 inch pitch specification.

Headers, Male Pins Part Context

This component belongs to the PEC series of male headers from Sullins Connector Solutions. The series offers various configurations including straight and right-angle options with different pin counts. It is designed for general-purpose rectangular connector applications requiring robust mechanical and electrical performance.

Headers, Male Pins Replacement Considerations

Compatible substitutes include PEC17SABN and PBC17SBEN. Verify identical pitch, pin count, and mounting style before substitution. Ensure replacement parts meet the same thermal and current ratings.
