PEWAN102-15SF

Antennas RF Overview

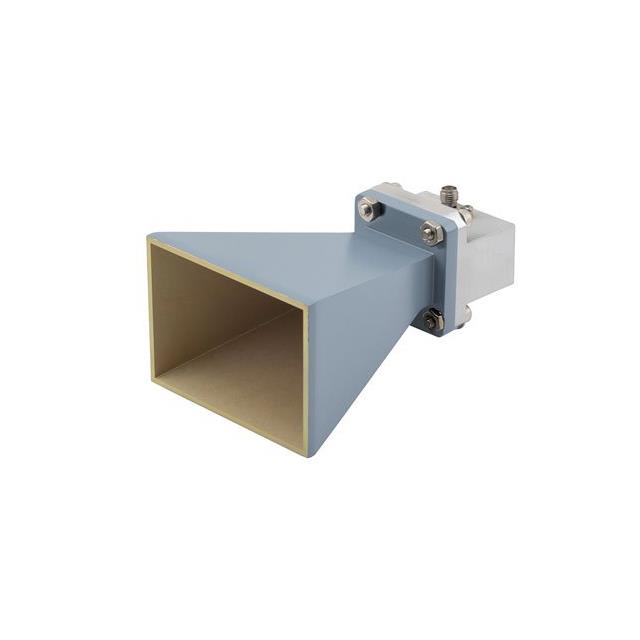

The PEWAN102-15SF is a standard gain horn antenna manufactured by Pasternack. It utilizes the WR-102 waveguide size and features an SMA female connector for input. The operational frequency range spans from 7 GHz to 11 GHz. The antenna provides a minimum gain of 15 dBi. Key beam width specifications include a 3dB vertical width of 32 degrees and a 3dB horizontal width of 31 degrees.

Antennas RF Feature Summary

• Standard gain horn design optimized for millimeter-wave applications
• WR-102 waveguide construction with SMA female interface
• Defined beam width characteristics for directional coverage

Antennas RF Applications

• Millimeter-wave communication systems
• RF test and measurement setups
• Satellite ground station links

Antennas RF Procurement Notes

Verify that the SMA female connector matches the mating hardware requirements of the system. Confirm the WR-102 waveguide dimensions align with the mounting infrastructure. Ensure the operating environment falls within the specified 7 GHz to 11 GHz range to maintain performance integrity.

Antennas RF Selection Notes

Select this component when a fixed-gain solution is required for the 7-11 GHz band. The SMA interface simplifies integration with standard RF equipment. Consider the physical size of the WR-102 horn relative to available space in the installation area.

Antennas RF Part Context

This model belongs to Pasternack's line of RF antennas, specifically focusing on horn types for microwave frequencies. The product series supports various waveguide sizes and connector options to address diverse signal transmission needs across different industrial sectors.

Antennas RF Replacement Considerations

Check for other Pasternack models with similar WR-102 waveguide compatibility and comparable gain levels if exact substitution is needed.
