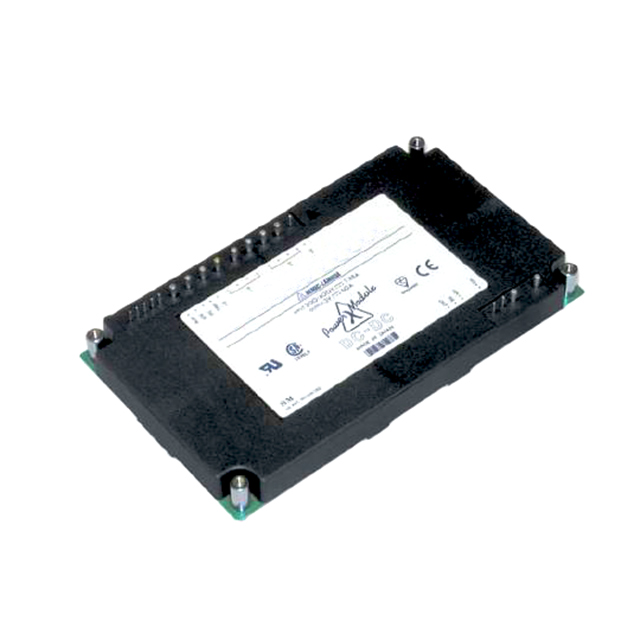

PH150S48-28

PH150S48-28 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists TDK-Lambda. Its product description is DC DC CONVERTER 28V 150W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PH150S48-28

• Description：DC DC CONVERTER 28V 150W
• Series：PH-S (150W)
• Mfr：TDK-Lambda
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：76V
• Voltage - Output 1：28V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：5.4A
• Power (Watts)：150 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP
• Operating Temperature：-20°C ~ 85°C
• Efficiency：-
• Mounting Type：Through Hole
• Package / Case：Module
• Size / Dimension：3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for PH150S48-28
