PIC18LF25K83-I/MX

Microcontrollers Overview

The PIC18LF25K83-I/MX is an 8-bit microcontroller from the PIC18(L)F25/26K83 family, utilizing a C Compiler Optimized RISC architecture. It features 32 KB of Flash program memory, 2 KB of Data SRAM, and 1 KB of Data EEPROM. The device operates at up to 64 MHz with a 62.5 ns instruction cycle. It includes a 12-bit ADC with Computation (ADC2), two UARTs, two I2C modules, one SPI module, and a CAN module. Operating voltage ranges from 1.8V to 3.6V, with an industrial temperature range of -40°C to +85°C.

Microcontrollers Feature Summary

• Integrates a CAN module supporting Legacy, Enhanced, and FIFO modes for automotive and industrial communication protocols.
• Features a 12-bit ADC with Computation (ADC2) providing automated signal analysis, filtering, and threshold comparison.
• Includes two Direct Memory Access (DMA) controllers for hardware-managed data transfers between memory regions.
• Offers Core Independent Peripherals such as Configurable Logic Cells (CLC), CWG, and NCO for motor control and power supply applications.

Microcontrollers Applications

• Automotive systems requiring CAN bus connectivity
• Industrial control and automation equipment
• Motor control and power supply designs
• Sensor interface and signal processing applications

Microcontrollers Procurement Notes

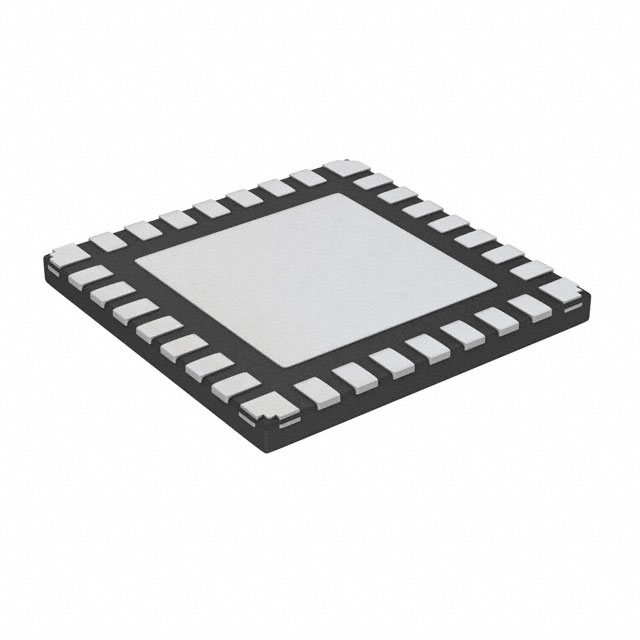

Verify that the ordering suffix 'I' corresponds to the Industrial temperature range (-40°C to +85°C) and 'MX' indicates the UQFN-28 package. Confirm the 'LF' designation ensures operation within the 1.8V to 3.6V voltage range. Ensure compatibility with development tools such as the DM164136 kit if required for prototyping.

Microcontrollers Selection Notes

Select this component when a full-featured CAN peripheral is required alongside high-performance analog capabilities. The inclusion of ADC2 reduces software complexity for signal analysis tasks. Consider the DMA controllers for efficient data handling without CPU intervention. Verify that the 28-pin UQFN package fits the board layout constraints.

Microcontrollers Part Context

This device belongs to the PIC18(L)F25/26K83 family of 28-pin microcontrollers. It shares architectural similarities with the PIC18F25K83 but differs in operating voltage specifications. The family emphasizes low-power operation and extensive peripheral integration for intelligent wired and wireless communication applications.

Microcontrollers Replacement Considerations

PIC18F25K83-I/MX: Compatible pinout and feature set; verify voltage range requirements as it supports up to 5.5V.

Microcontrollers FAQ

What are the available operating modes for the CAN module?

The CAN module supports three operating modes: Legacy mode (compatible with existing PIC18CXX8/FXX8 modules), Enhanced mode, and FIFO mode.

How does the ADC2 module improve application efficiency?

The ADC2 module provides automated post-processing, including averaging, filter calculations, oversampling, and threshold comparison, which reduces the need for complex software routines.
