PIC32MZ2025DAB288T-I/4J

Microcontrollers Overview

The PIC32MZ2025DAB288T-I/4J is a 32-bit cache-based microcontroller from the PIC32MZ Graphics (DA) family, operating at frequencies up to 200 MHz with a performance rating of 330 DMIPS. It features a MIPS32 microAptiv core equipped with 32 KB I-Cache and 32 KB D-Cache. The device includes 2 MB of Live Update Flash memory and 640 KB of SRAM. It integrates a high-performance 2D GPU and a 3-layer graphics controller for display applications. Memory interfaces support external DDR2 SDRAM up to 32 MB, SD/SDIO/eMMC, and Serial Quad Interface.

Microcontrollers Feature Summary

• Integrated high-performance 2D Graphics Processing Unit (GPU) and 3-layer graphics controller supporting up to 24-bit color.
• DSP-enhanced MIPS32 microAptiv core featuring four 64-bit accumulators and single-cycle MAC operations.
• Advanced analog subsystem including 12-bit ADC modules with up to six circuits and Charge Time Measurement Unit (CTMU).
• Comprehensive security engine providing hardware acceleration for AES, 3DES, SHA, MD5, and HMAC algorithms.

Microcontrollers Applications

• Industrial control systems requiring robust connectivity and processing power
• Human-machine interface (HMI) panels with graphical displays
• Medical devices utilizing Class B safety library compliance
• Smart energy metering and utility infrastructure equipment

Microcontrollers Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm package type, temperature range, and tape-and-reel specifications. Ensure compatibility with required voltage levels and peripheral configurations before finalizing procurement orders.

Microcontrollers Selection Notes

Select this component for designs demanding integrated graphics capabilities alongside substantial program memory. Evaluate the need for external DDR2 SDRAM interfaces and verify that the 288-pin LFBGA package fits the board layout constraints. Consider the XLP technology benefits if low-power operation in sleep modes is critical.

Microcontrollers Part Context

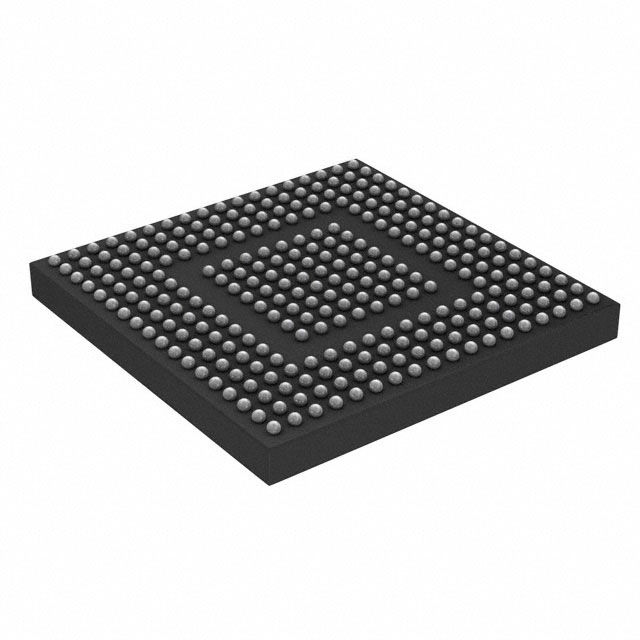

This device belongs to the PIC32MZ DA series, designed for graphics-intensive embedded applications. It combines a powerful processor core with dedicated hardware accelerators for graphics and cryptography. The series supports various packages, with this specific model utilizing a 288-pin LFBGA configuration to accommodate extensive I/O and memory connections.

Microcontrollers Replacement Considerations

Consult official Microchip documentation for direct pin-compatible or functionally equivalent alternatives within the PIC32MZ DA family. Verify memory sizes and package dimensions when considering substitutes.
