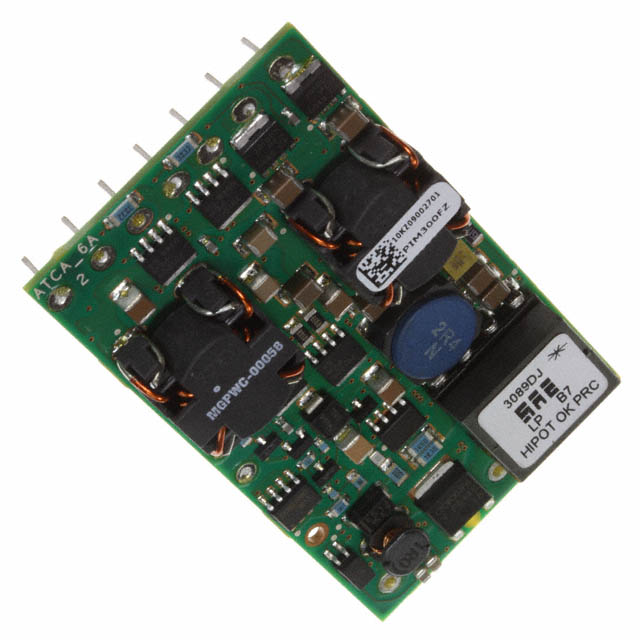

PIM300FZ

PIM300FZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER -48V 300W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PIM300FZ

• Description：DC DC CONVERTER -48V 300W
• Series：PIM300X (300W)
• Mfr：OmniOn Power™
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：-38V
• Voltage - Input (Max)：-75V
• Voltage - Output 1：-48V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：6.25A, 2.4A
• Power (Watts)：300 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：OCP, OTP, OVP, UVLO
• Operating Temperature：-5°C ~ 85°C
• Efficiency：98%
• Mounting Type：Through Hole
• Package / Case：Module
• Size / Dimension：2.78" L x 1.45" W x 0.50" H (70.6mm x 36.8mm x 12.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for PIM300FZ
